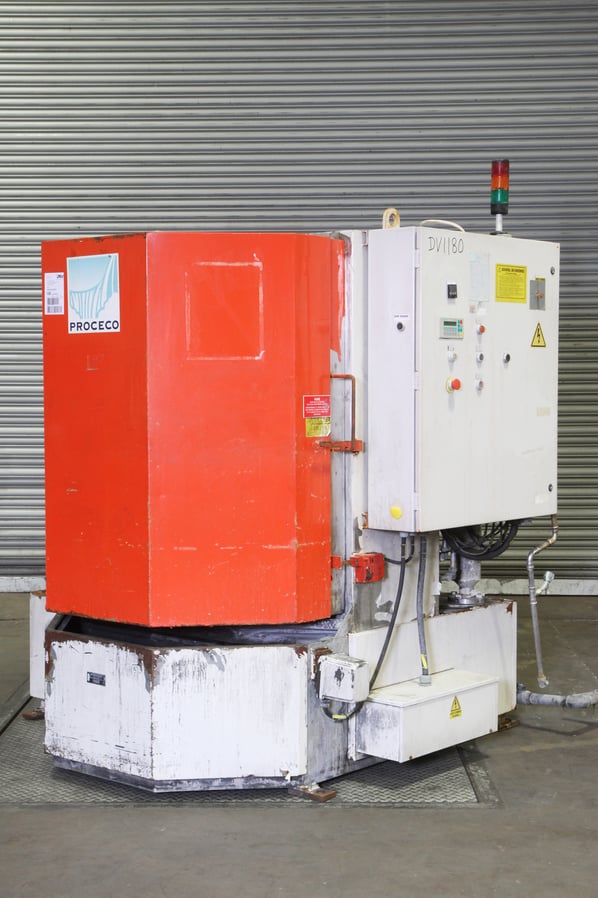

Proceco Typhoon PC 42 Rotary Table Wash And Rinse Plant

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
DV1180
Manufacturer
Proceco
Model
PC. 42-42-E-1000-RD-SS
Year of Manufacture
2001
Serial
00-107
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
Ø 1065 x 1st 450 x 2nd Stage 1000 high
Process Stages
2 stage spray wash and rinse.
Other Info
Large 450Kg Load capacity
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
575
External Dimensions (WxDxH mm)
1950 x 1950 x 2100

Description

PROCECO TYPHOON - PC parts was designed for aqueous cleaning and degreasing of small- to medium-size parts. Larger parts are placed directly on the cabinet-mounted, non-retractable turntable, while small parts are batch-loaded into baskets to be processed.

This front-loading industrial parts washer combines pressure, heat and an aqueous cleaning solution to clean and degrease your parts in minutes. The offset door arrangement also means that larger parts can be directly loaded onto the table by overhead crane.

The PC parts washers also feature a large-volume 750ltr wash solution tank, which reduces the likelihood of foaming by reducing agitation through the pumping action, offers a stabilised solution chemistry and also helps to settle contamination.

The PC requires limited floor space and is therefore ideally suited to lean manufacturing cells or maintenance and repair centres and shops.

This particular PROCECO TYPHOON®-PC turntable spray washer is configured as a multi-stage plant including a recirculated heated wash tank and a direct feed mist rinse to drain final stage.

Further design specifications include Siemens PLC process control, steam extraction fan, and powered rotary table.

For when the machine is used on extremely dirty or oily products the machine has been equipped with an optional chain drag oil and flocculent surface skimmer.

Design features such as low-maintenance pumps, digital temperature controllers and cycle timers are all standard on this PROCECO PC 42 turntable parts washers.



pdf icon Print / Download Proceco Typhoon PC 42 Rotary Table Wash And Rinse Plant Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
