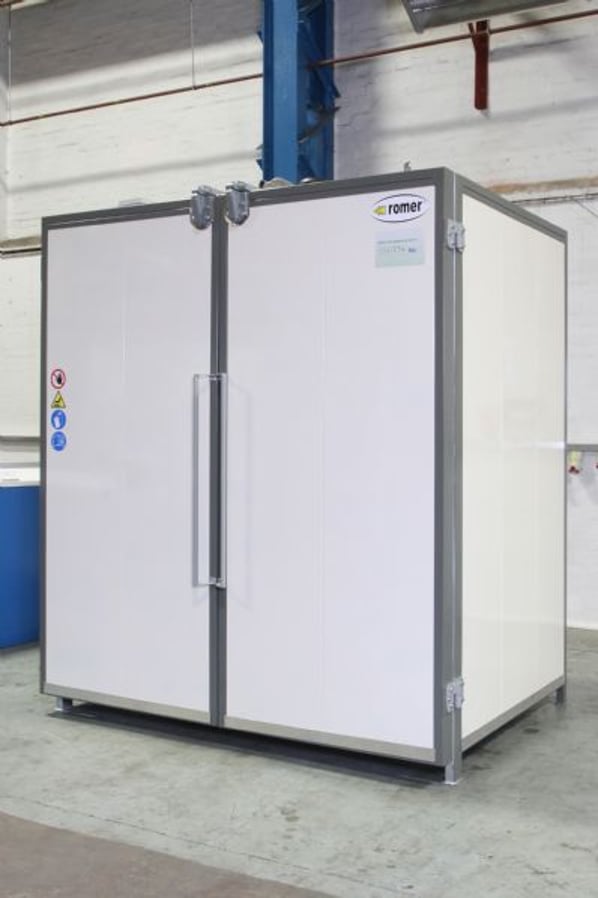

Romer SLS-150 300c Electric Box Oven

New

Price [?]
£ Login or Register for price
Guarantee
1 year manufacturer guarantee
Availability:
Normally available in 28 days
Stock No
NEW037
Manufacturer
Romer
Model
SLS300
New or Used
New
Internal Size (WxDxH mm)
1600 x 1200 x 1800
Max Temp
300°C
Weight (kgs)
1510
External Dimensions (WxDxH mm)
2000 X 1760 X 2810

Description

This NEW electric box oven is constructed from a heavy duty steel box sectioned frame with in filled 160 mm 300 mm thick insulation. The interior is constructed from stainless steel sheet offering a sturdy, easy to clean and durable oven.

The oven includes the following features as standard  ;

  • Double loading swing aside doors with adjustable explosion proof positive locking closure mechanism which allows easy access for the operator as well as an escape from within.
  •  Roof mounted air circulation fan with positional hot air return vents for uniform and even heat distribution within the chamber. The cross flow to vertical air flow pattern of the heated air can offer uniformity levels to within ± 5°C  throughout the ovens internal chamber.
  • Rapid heat up times within the chamber due to the engineered design employed in the construction process and the work chamber being completely isolated from the insulative outer panels. This design reduces the heat loss from the chamber saving on the power required to reach and maintain the set point temperature.
  • Modular heating system - easy to access and replace, these innovative heaters produce heat as soon as they are energised offering greater stability and less overshoot during operation. The design of these elements also offers low Watt densities, meaning a longer lifespan can be expected.
  •  Side mounted IP54 rated control panel with dual display digital temperature controller, overtemp and process timer which can activate a sounder when the selected process time has elapsed and an LED process status indicators.
  • Insulated slotted rail floor for use with the supplied trolley which is equipped with cast-iron wheels for ease of product loading and removal.  (This decreases the operational height of the oven by 100 mm)

Typical applications may include;

  • Powder Coating Curing Processes
  • Curing resins, rubbers and composites
  • Processing plastics,
  • Bonding
  • Drying applications
  • Thermal testing etc

General Specifications 3.5m³:

  •  Internal Dimensions: 1600 x 1200 x 1800 high
  •  External Dimensions: 1760 X 2000 X 2810 high
  •  Maximum process temperature: 300°C
  •  Doors – 2
  •  Power rating:  31.1 kW
  •  Heat up Time: 15 – 40 mins to 180°C (load dependant)
  •  Tolerance: <+/- 3°C @ 180°C

pdf icon Print / Download Romer SLS-150 300c Electric Box Oven Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
