Air Cleaning Systems Limited OMF2500 Fume / Dust Extractor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
EV1440
Model
OMF 2500
Year of Manufacture
2009
New or Used
Used (Second Hand)
Approx Duty CFM / M³/Hr
1500 // 2500
Filter Area ft² / m²
Variable
Other Info
Universal extractor
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
224
External Dimensions (WxDxH mm)
850 x 740 x 2220

Description

The Model OMF2500 is a mid-range mist filter and air cleaning system, designed for attachment to larger machines, or to multiple smaller units.

The OMF2500 mist collector is designed to remove oil/coolant mist, light dusts and smoke at the source, brings you in compliance with OSHA and EPA standards, improves employee safety and working conditions, protects equipment, plant fixtures and work in progress, and reduces plant maintenance costs.

OMF2500 draws a nominal airflow of 2500m3/h and can support machine tools with open door areas of 4m2

The multi combination of filters covers the requirements for fume, dust, and wet waste streams.

The first filter station removing wet particles with the second removing dry dusts and the final stage being either a carbon filter for fumes or HEPA filters for the removal of heavy metals.

This system allows for local installation to the machines with the cleaned air being returned to the room, improving both the environment and savings on energy losses.

Features

  • Compact, stand-alone unit
  • Easy access for filter changes
  • 2500m3/h nominal airflow
  • Designed for machine tools with open areas up to 4m2 or multiple systems.
  • 415 Volt 3 phase supply 50HZ Current 4.5A
  • 250mm clipped duct outlet
  • Independent power supply or wired to your machine tool
  • Fan Type Backward Curved Centrifugal Fan
  • Power 1700w
  • Airflow 2500m3/h
  • Inlet 200mm Clipped Ducting
  • Colour RAL7035 as standard

pdf icon Print / Download Air Cleaning Systems Limited OMF2500 Fume / Dust Extractor Datasheet

Additional files

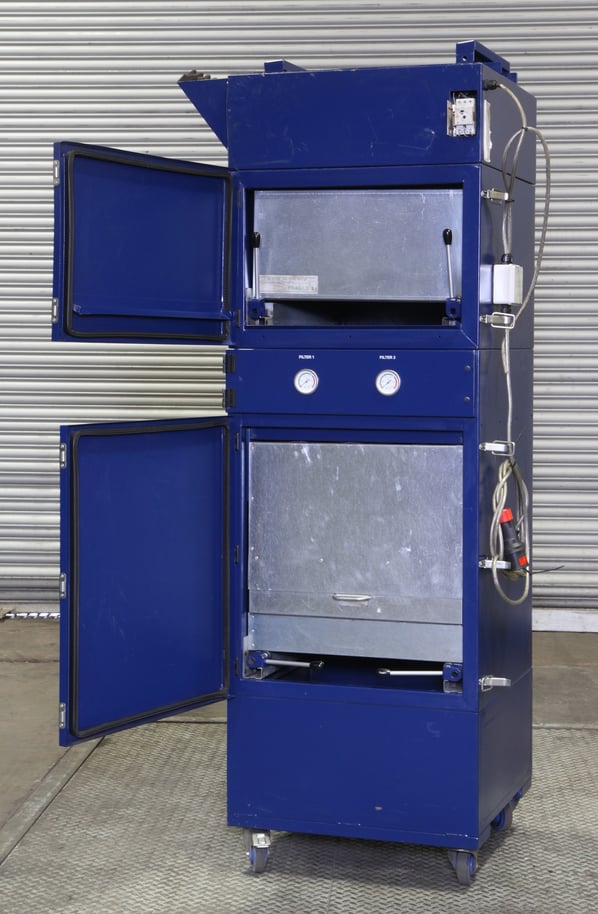

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
