HydraPower Dynamics Rack Pre-treatment Line

Used / Second Hand

Price
Please call on +44 (0) 1922 45 8000
Availability:
In stock now
Stock No
HYDRA1
Manufacturer
HydraPower Dynamics
Model
Rack Type Immersion Treatments Line
Year of Manufacture
2006
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
750 x 3000 x 1750
Process Stages
10 Stations + Load & Unload
Other Info
All wetted stages - Stainless Steel
Location
Membury, Berkshire, UK
External Dimensions (WxDxH mm)
4600 (+ 800 walkway) x 12,500 x 4900

Description

Hydrapower Dynamics Rack type Immersion treatments line - Originally used for multi purpose, Alocrom, Etch & Clean prior to painting

Alocrom is ideal for coating all types of aluminium and aluminium alloys including high silicon pressure die-castings. It should be used on aluminium wherever maximum corrosion resistance and when electrical conductivity is required. It is suitable for components that are to be painted or left unpainted. It gives a protective golden coloured coating which is, like anodising, integral with the aluminium.

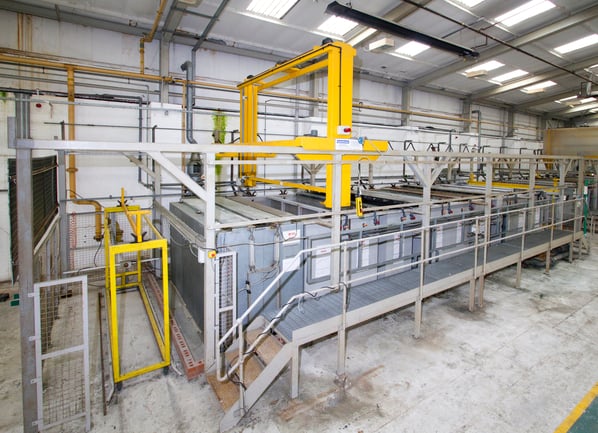

The plant consists of an 10 station line, which includes 6 x wet process tanks, a load/unload station and on-line Lanemark gas fired well type drying oven with pneumatically operated lid.

Reasons for pre-treatments

Before a  finish can be successfully applied, the surface of the item to be painted should be clean and free from any type of oil or grease contamination.The use of conversion coatings can greatly assist in the adhesion of the paint to the substrate material.

Post clean drying oven: After the pre treatment stage the components should be thoroughly dried of any cleaning solution, making them ready for the powder to be applied.

Suitable for ferrous metals and aluminium it is an economic and speedy process, affording excellent corrosion resistance, wear resistance, adhesion and lubricity properties.

Immersion pre-treatment process with electric heating

B1. Alkali Clean, Stainless Steel,  heated, Insulated and Air agitation

B2. Water rinse

B3. Water rinse

B4. Deoxidizer, fume extracted lip.

B5. Water rinse

B6. Water rinse

B7. Alocrom, Mild Steel, Electrically heated

B8. Water Rinse

B9. Water Rinse

B10.  Well oven with pneumatic lids, Lanemark model FD5CN- 30 60kW package burner - 2005 - 900 x 3000 x 1900 Deep

The system includes:

  • Transporter including manual control option. Mitsubishi PLC with HMI controller and programmable interface.
  • 2 x load end and unload ends, each 1600 mm wide
  • Full length operator walkway with safety handrails, access at each end.

Process tanks

Each tank having internal dimensions of 750 x 3000 x 1750 mm.

Overall Footprint

4600 (+ 800 walkway) x 12,500 x 4900 mm high

 ** Professionally cleaned, marked up, disconnected & moved (within existing location) into storage **

pdf icon Print / Download HydraPower Dynamics Rack Pre-treatment Line Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
