Walther Trowal C3.4 / 370 Flighted Conveyor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Run & Checked Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
MU476
Manufacturer
Walther Trowal
Model
C3.4 / 370
Year of Manufacture
11/2002
New or Used
Used (Second Hand)
Process Application
Materials handling
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
250
External Dimensions (WxDxH mm)
450 x 3400

Description

Walther Trowal C3.4 / 370 Flighted Conveyor

Walther Trowal C3.4/370 modular slatted belt conveyors are an ideal way of conveying products between processes. The modular construction means that individual or custom flights can be inserted allowing the unit to be adapted to suit a wide range of products.

Used in many arduous environments from sub zero conditions up to temperatures over 100 degrees Celsius. They are especially useful for heavy side loading or off loading along its length. The direct sprocket drive ensures no tracking problems, whatever the belt width or length. It also eliminates any belt slippage and because it allows the belt to run loose dramatically reduces load on the drive shaft bearings. This in turn reduces power requirements. With the all round low friction properties of these conveyors the outstanding feature must be long life expectancy with minimal maintenance.

Features

  • Belts are available in many different profiles and materials to suit almost every application.
  • Positive direct sprocket drive ensures no tracking problems.
  • Robust heavy duty belt types resistant to cuts and hot products.
  • Available in many belt configurations, flat-top, perforated, slotted, flighted and grip top.
  • Damaged belts can easily have individual slats replaced.
  • Standard material types: Polypropylene (PP) for use in many general applications. Polyethylene (PE), another lightweight thermoplastic, is characterized by superior fatigue resistance, high impact strength, and flexibility. Acetal (PA) thermoplastics are considerably stronger than PP and PE. Acetal features a good balance of mechanical, thermal, and chemical properties and a low coefficient of friction.



pdf icon Print / Download Walther Trowal C3.4 / 370 Flighted Conveyor Datasheet

Additional files

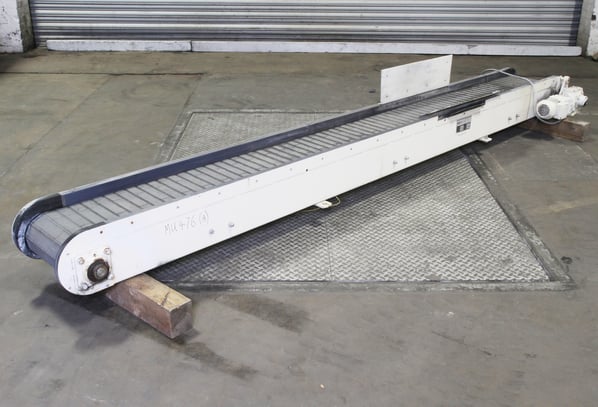

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
