Kerry ( Guyson International ) Microsolve M 350 C Co-Solvent Cleaner With Dual Ultrasonics

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Run & Checked Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
DU1147
Manufacturer
Kerry ( Guyson International )
Model
Microsolve M 350 C
Serial
599 33-2-00
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
300 x 210 x 380
Process Stages
4 stage ultrasonic cleaning
Other Info
SED Compliant machine
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
2360 x 700 x 1300

Description

Microsolve Co-Solvent Vapour Ultrasonic Degreasing Systems

Guyson’s Kerry Microsolve cleaning systems attain the highest cleaning standards yet keep running costs low.

THE CO-SOLVENT PROCESS

Guyson Co-Solvent systems provide two ultrasonic cleaning stages, both with filtration, followed by vapour rinsing and freeboard dry.

In Stage 1 In the first cleaning tank a mixture of HFE (hydrofluoroether) and a hydrocarbon solvating agent removes gross contamination from the components. Large quantities of dirt and oils can be taken up by the solvating agent, and this makes the process particularly suitable for heavy duty cleaning.

Cleaning with or without the use of ultrasonics is carried out in the stage one tank by immersion of the components into the Co-Solvent mixture, usually comprising of a HFE (hydrofluoroether) and petroleum distillate based solvating agent.

In Stage 2 pure HFE distillate removes from the components residues carried over from the primary cleaning tank.

Immersion into stage two's tank of pure HFE distillate, removes any residues from the components, carried over from stage one's cleaning tank.

In stage 3 Cleaning is followed by a final rinse in the vapour zone located above both tanks comprising of the pure distilled solvent.

In stage 4 Drying then takes place with the components located in the freeboard area where the solvent evaporates mostly back onto the refrigerated cooling coils situated above and around the process tanks.

Both cleaning tanks include base mounted ultrasonic transducers with Pulsatron generator, solution heating and a pumping and filtration system.

Typical Cleaning Applications

The Co-solvent process handles with ease cleaning applications such as removal of polishing compounds, maintenance cleaning of power generation system components, and flux removal from PCBs, including no-clean and lead-free solder flux residues.

Solvent retention features unique to the Microsolve range:

triple coil reflux cooling, vapour break, 150% freeboard, optional auto top-up and solvent monitoring–ensure that systems are safe and comply fully with environmental and safety legislation.

These design features also mean that Microsolve systems are able to operate with low, predictable solvent usage and customers enjoy low, predictable running costs.

The Kerry Microsolve Co-Solvent vapour degreasing system manufactured by Guyson has four process stages comprising of ultrasonic cleaning, ultrasonic rinse, followed by vapour rinsing and freeboard drying.

The Microsolve has proven unique solvent retention features that provide economic benefits as well as effective use of HFE (hydrofluoroether) or HFC (hydrofluorocarbon) solvents.

MICROSOLVE 350C TECHNICAL DATA

Dimensions (mm)
Overall - length (l-r) 1850
Overall - width (f-b) 700
Overall - height 1290
Tank (internal) - l 350
Tank (internal) - w 250
Tank (internal) - d 300
Basket (internal) - l 295
Basket (internal) - w 185
Vapour depth 300
Freeboard height 375
Initial fill (litres) 74

Ultrasonic stages
Power 500
Watts/litre 17

Electrics
Electrical supply 415V 50 Hz 3 phase N&E
Loading per phase (A) 20

Materials
Tank units 316L electropolished stainless steel
Pipework Stainless steel
Framework, panels Mild steel
Paint Durable, semi-gloss,
acrylic RAL 7035 grey

Control Panel
Incorporates Operator Interface with 2 x 24 character backlit LCD display
Function buttons
On/Off, Ultrasonics Control, Filtration
Control,Temp Display, Set Variable Operating Parameters









pdf icon Print / Download Kerry ( Guyson International ) Microsolve M 350 C Co-Solvent Cleaner With Dual Ultrasonics Datasheet

Additional files

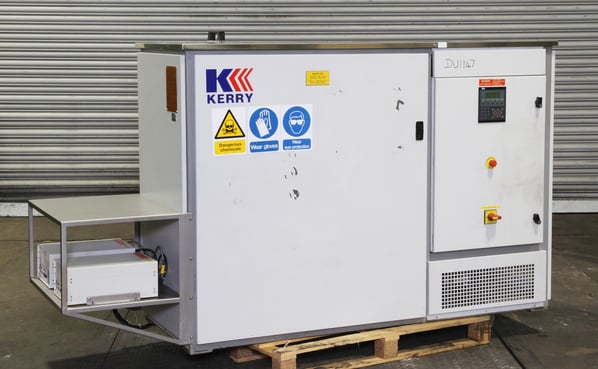

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
