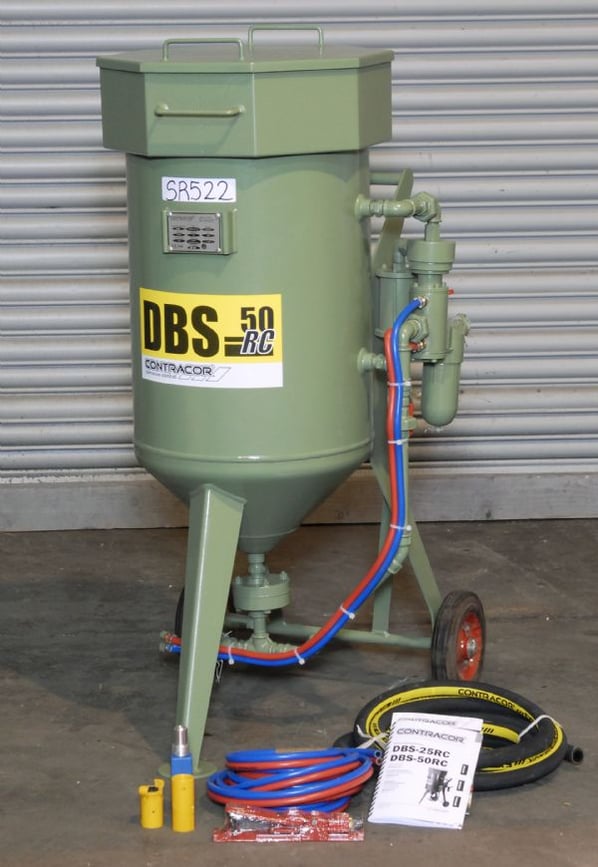

Contracor DBS -50RCS Shotblast Pot

New

Price [?]
£ Login or Register for price
Guarantee
1 year manufacturer guarantee
Availability:
In stock now
Stock No
SU703
Manufacturer
Contracor
Model
DBS-50RC Package
Year of Manufacture
2015
New or Used
New
Work Handling Method
Manual operation
Other Info
NEW smaller size portable unit
Weight (kgs)
73kg
External Dimensions (WxDxH mm)
415 x 600 x 1180mm

Description

Contracor is Germany’s leading manufacturer of abrasive blasting equipment for metal surface preparation, surface finishing, surface cleaning and corrosion control. Its products are all built to exacting German standards and represent a premium quality

The Contracor pressure pot blasting system 50, litre capacity pot with hoses, deadmans handle, blast nozzle and remote control valve, if fact everything you need to start blasting.

The unit comes as standard f with a CAF 3 moisture separation trap for the protection of both the blast media and internal parts of the system, giving the units a long lease of life even when used with compressed air of a lower quality.

FIELD OF APPLICATION
Abrasive blasting of metal constructions, buildings, bridges, reservoirs, piping and concrete surfaces.
Cleaning up to grade SA-3.0. Performance up to 37 m2/h.

DESIGNED TO WORK WITH
any dry abrasives, max. grain size 4 mm.

STANDARD FEATURES OF THE DBS-50RC, 5m Twinline, 5m ExtraBlast-13, NHP-0, CQP-0, NTC-5.0

- 50-liter capacity tank
- Sieving screen
- Bowl cover
- Media flow control valve
- high-performance moisture separator
- inspection door
- quick hose couplings CFT
- remote control device with a pneumatically-operated RC main valve, deadman handle, 5-meter twin-line hose, hose fittings


Technical data:

DBS-50RC

Max. working pressure, bar 12
Vessel capacity, liter 50
Working temperature, –10 — +50
Vessel diameter, mm 415
Vessel height, mm 1180
Weight, kg 73

pdf icon Print / Download Contracor DBS -50RCS Shotblast Pot Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
