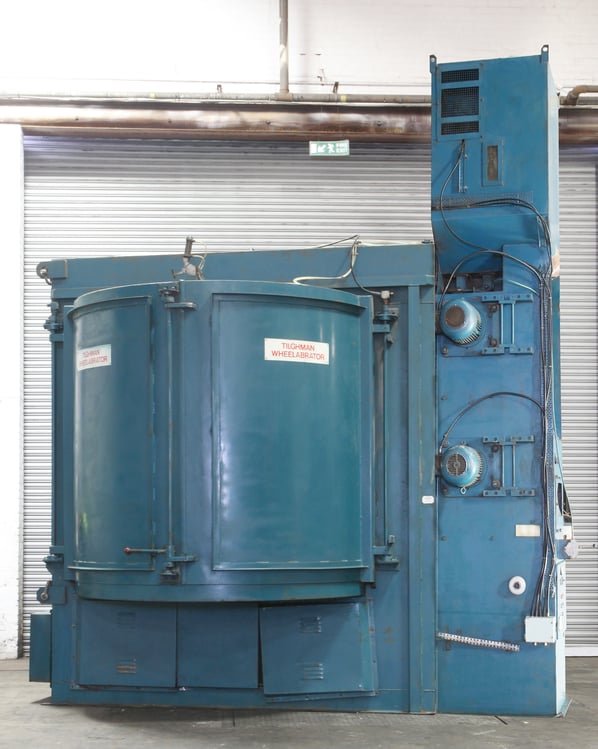

Tilghman (Wheelabrator) RT 2000 Rotary Table Shot Blast

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
SU701
Manufacturer
Tilghman (Wheelabrator)
Model
RT 2000
Serial
859-3569
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
Ø2000 x 2000
Work Handling Method
Manual load auto blast
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
9000kgs
External Dimensions (WxDxH mm)
4200 x 3700 x 5600

Description

RT 2000 Rotary Table Machine

Rotary table shot blast machines from Wheelabrator offer total flexibility in your shot blast operations. Whether you are cleaning welded structures and fabrications, cleaning and deflashing castings, or shot peening dynamically stressed components, the Rotary table shot blast machine, can help reduce the production time required.

The wheel placement allows for multiple impacts on the part, not just one. This ensures that any part whether short, tall, wide, or narrow is effectively blasted and minimises re-positioning.

With well known reliability, longevity, and progressive engineering, Wheelabrator Rotary tables represent unequaled quality and blasting efficiency.

Typical applications

  • Rust and heat scale removal
  • Paint stripping
  • Surface texturing
  • Preparation for painting, bonding and plating
  • Corrosion removal
  • Deburring, deflashing
  • Cleaning
  • Cosmetic finishing

Features and benefits

  • EZEFIT® blast wheels for high performance & reduced maintenance
  • Blast chamber features a fully welded construction of highly wear resistant steel
  • Blast zone protected by Wheelabrator replaceable Long-Lyfe ® liners
  • Automatic abrasive reclaim system with airwash abrasive separator for effective utilization of blast media
  • 1/4” thick rubber liners throughout the balance of the cabinet interior
  • Manganese steel liner on the side wall opposite the wheel, covering the door and cabinet hinge area
  • Catch hopper below the perimeter of the door to catch loose abrasive
  • 20mm thick manganese plate for work table
  • Sweeps are mounted under the table to direct media into the reclaim chute
  • Table rotation is five (5) RPM, driven by a direct connected gearmotor
  • Gravity reclaim to the belt and bucket elevator
  • 20” CFS separator with removable scalping tray and counter weighted swinging baffle for maintaining airwash density of the abrasive curtain
  • Panel equipped with push buttons and pilot lights, an emergency stop button and a mainline disconnect (pre-wired and mounted to machine)
  • Service and support by Wheelabrator Electrical
  • Primary power requirements - 460 volts, 60 hertz, 3 phase (other voltages available)
  • Extremely compact design,minimum floor space required
  • Totally self contained, includes dust collector, separator, cartridge filtration system
  • No special foundations required, no extra ducting needed
  • Clam shell door design allows easy loading with truck or crane
  • Full safety interlocks
  • Automatic in operation
  • Low noise levels
  • Heavy duty construction for the most demanding environment

Basic specifications

  • Number of wheels 2
  • Maximum abrasive flow  638 lbs/min
  • Abrasive charge 2000 lbs
  • Load dimensions ***
  • Maximum load weight 6000 lbs
  • Shipping weight 10800kg



Dust extractor specs -

Model: 50M/5.5kw
SN: 173140
2370 x 1080 x 3220mm / 1800kgs

pdf icon Print / Download Tilghman (Wheelabrator) RT 2000 Rotary Table Shot Blast Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
