Vacublast (Wheelabrator) Special Vector 325P AXT Robotic Blasting Machine

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Run & Checked Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
SU695
Manufacturer
Vacublast (Wheelabrator)
Model
Special Vector 325P AXT Etching Machine
Year of Manufacture
2003
Serial
300604
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
4400 x 3580 x 3500
Work Handling Method
Automatic contour profiling blast unit
Other Info
NUM CNC Robotic Work Processing
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
10000 x 8500 x 6000 overall as displayed

Description

This Vacublast unit was designed for complex, intricate and accurate cleaning and blasting operations with its fully computerised control and robotic 3 axis movements. The comprehensive package of twin nozzle pressure fed blasting and with its on-board storage of three different grades of blast material means any specification can be met to the highest of aerospace standards.

With the grading system employed it would easily lend itself to be adapted to peening operations for such industries as turbine blade manufacture.

General process overview

This Vacublast facility incorporates an acoustically lined enclosure, a removable power-driven turntable, a three axis roof mounted nozzle manipulator, a Vacu-Blast power pack incorporating media size classification, a high performance dust collector and a programmable controller based control system.

This facility has been designed to be installed within a processing environment including vibratory polishing and washing equipment.  Special measures were taken to prevent noise, media and dust escape from the design onset.

Processing takes place inside the enclosure with the components presented on the rotary worktable so that the manipulator mounted nozzle array can access the area to be processed.

The blast nozzles mounted on the multi-axis manipulator are moved across the worktable. The combination of component rotation and manipulated nozzle path ensure that the full surface of the component to be processed is accessible. (Some components may require a second blast cycle with the component inverted in order to access areas masked by contact with the worktable).

Sensors, mounted within the enclosure, ensure that in the unlikely event of the turntable drive failing the process will fail-safe.  The blast process will be interrupted and the operator alerted.

The blast enclosure incorporates a Vacu-Blast Waffle Floor recovery system through which ventilating air and spent media are recovered and directed back to the power pack. The enclosure incorporates acoustic control measures in order to reduce noise breakout.

Within the processing enclosure the media is fed from two pressure fed blast nozzles onto the exposed area of the component to be processed.  The nozzles are located in individual universally adjustable mounts for optimum positioning of the media streams.  The enclosure accommodates a three axis roof mounted manipulator to position and move the nozzle array over the area to be processed.

Discharged media is swept in to the Waffle floor mounted in the base of the enclosure by the ventilating air stream where it is pneumatically and mechanically conveyed back to the power pack for cleaning, storing and recycling. The power pack is mounted adjacent to the processing enclosure in order to reduce the floor space required by the plant.

A freestanding dust collector with a recovery fan on its clean side generates the ventilating and media recovery airflow. The dust collector structure incorporates an over pressure relief panel to release expanding gasses safely in the unlikely event of a sudden build-up of pressure within the structure.

A command console mounted adjacent to the operator’s position houses the control system for the facility. The system incorporates a NUM CNC based operating unit for automatic operation and process repetition.

Features include:

A PC based NUM Axium power,control system with H.M.I. with intuitive icon operation of primary machine functions and a hand held robotic positioning teach pendant.

This system offers unlimited storage of part programs which are written via an axis control unit with push button positioning acceptance of the (Z,Y,X) robotic axis nozzle manipulation.

Technical system specifications and included components

Cabinet module

  • Working chamber dimensions of 4400 x 3580 x 3500
  • Diagonal roof manipulator
  • 2 x Blast nozzles and hose assemblies
  • 4 x Air purge nozzles and hose assemblies
  • Rim driven turntable
  • Driven carriage
  • Turntable and carriage air purge
  • Emergency stop pull chain
  • Blow down gun
  • Operator platform
  • Manual inspection viewing window.
  • Double door assembly with operator access door
  • Waffle floor / manifold recovery
  • 8 x roof mounted air inlet assemblies
  • 4 x roof mounted sodium lights
  • NUM CNC operator control panel with teach pendant
  • NUM CNC Electrical control panel

 Power pack modules

  • Reverse pulse dust collector with explosion relief and Hepa filters
  • Dust collector bin level sensors
  • Steel and vacuum hose recovery duct
  • Full flow reclaimer
  • Intermediate storage hopper
  • Conical vibratng screen assembly with debris take off duct
  • Vacuum break assembly
  • Belt and bucket elevator (0.6 ton/hr duty)
  • Size classifier 30" / 5 deck with "Divert to waste" facility
  • Screw conveyor (inclined at 30° / 0.6 ton/hr duty)
  • 3 x 160L storage hoppers (60°Cone)
  • Storage hopper drain facility
  • 120L N/C pressure vessel system
  • Air lnlet assembly
  • Twin air outlet assembly
  • Pressure gauge and transducer
  • Level probe
  • Twin manual adjustable feed valves
  • Twin blast hose compressor assembly
  • Aeration block
  • Media drain assembly
  • Pneumatic control panel

Blast nozzles

  • 2 x Boron Carbide 8mm bore convergent / divergent

Blast hoses

  • 2 x 3/4" bore

Roof manipulator

  • Horizontal (X) 3300 stroke
  • Horizontal speed 1 to 3000 mm/min
  • Vertical (Y) 1700 stroke
  • Vertical speed 1 to 3000 mm/min
  • Wrist (Z) +170° from datum (nozzle straight down) - 130°from datum

Turntable

  • Diameter 3000 mm
  • Max load 300 kg
  • Rim drive speed 1 to 5 rpm
  • Carriage speed 3000 mm/min

Dust collector

  • Farr Tenkay mkIV 10D (6000cfm @ 22"WG total)

Noise levels

  • 75dB(A) max operator position







pdf icon Print / Download Vacublast (Wheelabrator) Special Vector 325P AXT Robotic Blasting Machine Datasheet

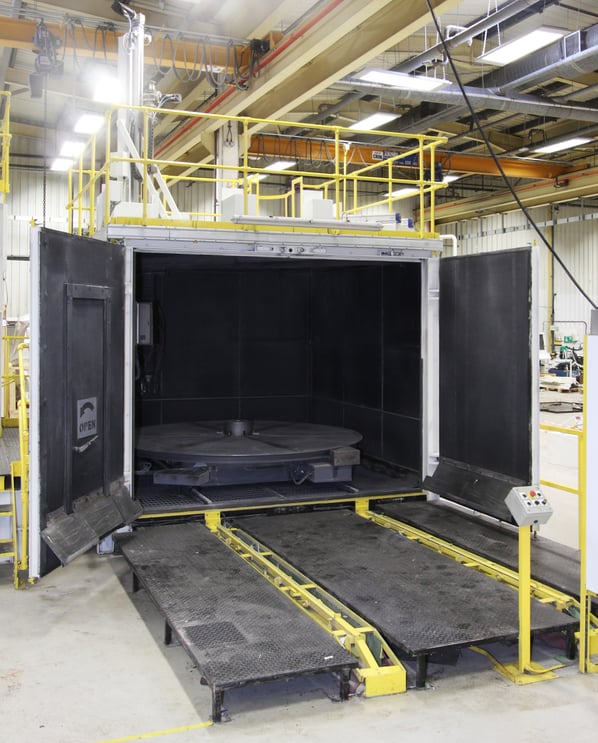

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
