Polaron Cortina 0-60V 0-7000A Thyristor Controlled Rectifier
- Stock No
- Year of Manufacture
- New or Used
- Used (Second Hand)
- Other Info
- Rebuilt, Updated and Modified in 2012
- Our Central Warehouse, Aldridge, UK
- Weight (kgs)
- External Dimensions (WxDxH mm)
- 1760 x 1210 x 1900

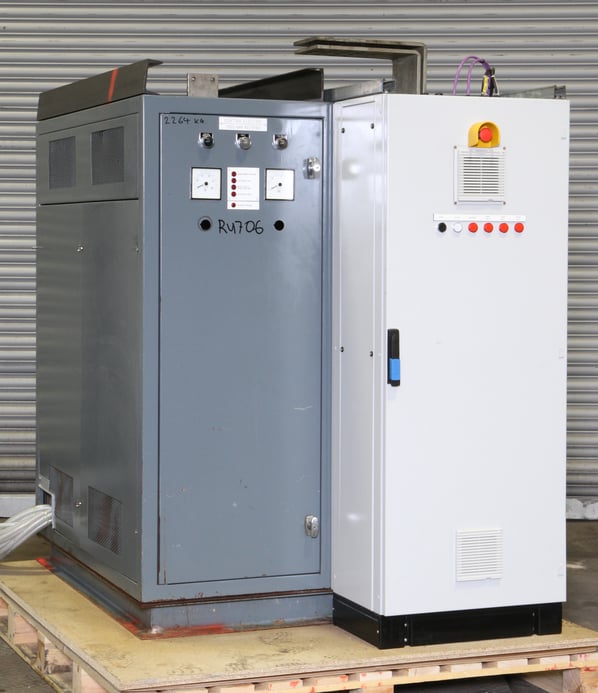

A Polaron Cortina 7,000 Amp rectifier offering a thryristor controllable 0-60 Volt output.
Cortina specialise in the manufacture of Variable voltage and current thyristor rectifiers, for anodising, welding and plating applications.
The Polaron Cortina is a primary SCR, single copper wound transformer, DC power supply that was originally employed for a plating/brightening anodizing application.
The Polaron Cortina rectifiers SCR diodes are water cooled allowing it to be used in warmer climes compared to the more traditional UK air cooled units.
Output Voltage Range: 0V - 60VDC
Output Current Range: 0A - 7,000Amps
Features & Benefits.
Highly Efficient all copper transformer construction
Updated Emmerson Mentor II thyristor driver
Water Cooled Domestic and International Voltage Capability
Low Ripple Tight Voltage and Current Regulation
Selectable DC Overload DCCT coils for current feedback.
Power factor 0.9 at full rated output
Relative humidity up to 95%
Efficiency 85% - 90%
Input Line Variation Standard: +/- 5% from nominal Voltage
Regulation +/- 0.5% of full rated output
Current Regulation 2.8% AC Ripple @ Full Output :
Ramp time 0 - 100% adjustable from 20 to 60 secs
Polaron Cortina three-phase controlled rectifiers have a wide range of applications;
- Electrowinning (electroextraction),
- DC transmission systems,
And water purification to name but a few.
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
