Nederman Dantherm MJC 132/66/5-4 Dust Extractor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Refurbished May 2015 - Available immediately
Stock No
EU1345
Manufacturer
Nederman
Model
MJC 132/66/5-4
Year of Manufacture
2006
Serial
061229580
New or Used
Used (Second Hand)
Approx Duty CFM / M³/Hr
3000 - 6000 // 5000 -10,000
Filter Area ft² / m²
1353 // 132
Other Info
ATEX Compliant extractor
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1700
External Dimensions (WxDxH mm)
2600 x 2500 x 3300

Description

MJC cartridge dust collector

Suitable for many different applications that generate light to heavy volumes of any dust

The MJC range of reverse jet tubular bag dust collectors was developed for continuous operation in industrial process filtration and dust collection applications; incorporating patented Nederman UniClean cartridge technology for maximum cleaning efficiency and extended life.

Air Volume Range: 5000 to 10,000 m3/hr (3,000 to 6,000 CFM) with the currently installed 11kW fan set

Fan size can be increased to a maximum 18.5kW fan set with an approximate potential volume range of 7000 - 13,00 0m3/hr (4000 - 7650 CFM)

Key features

  • Standard filter arae of 132m2 (1353ft2);
  • Typical airflow volumes up to 10.000m3/h (6000 CFM), subject to application
  • Robust weatherproof welded steel construction
  • Space saving integral fan
  • Independently tested with ATEX compliant features for St1, St2 and St3 dusts
  • Integral pre-separation chamber, cross flow / down flow inlet air pattern

Typical dust control and process applications

  • Bulk materials handling – conveying, screening, sieving, mixing, bin/silo venting
  • Shot, sand and bead blasting
  • Building materials manufacture and distribution
  • Dust extraction for all dry free flowing powders and granular material
  • Welding and cutting – laser, plasma, arc
  • Chemical, plastics and pharmaceutical powders

The MJC is a long established range of reverse jet cleaned tubular cartridge filters designed for continuous operation in process and general dust extraction applications with free flowing dust.

This recently upgraded filter range offers two filter cartridge lengths and on-line high efficiency reverse jet
cleaning.

All MJC units have generously sized integral pre-separation chambers to increase their dust load capacity whilst reducing the load on the filter cartridges. Normal maintenance is from the top. A range of space saving integral fans from 0.75kW to 18.5kW may be employed, with optional air silencer.

Features

• Robust welded steel construction
• Weatherproof for exposed locations
• Normal maximum operating temperature 80˚C
• On-line cleaning with high efficiency diaphragm valves
• Compressed air pressure typically 5.0 to 5.5 bar
• Normal maximum negative/positive operating pressure 8000Pa/2000Pa
• Large integral pre-separation chamber
• Downflow/crossflow inlet air pattern reduces cleaning power required
• Five cartridge media types to cater for most applications
• Good access for maintenance of cartridges and cleaning components from unit top or side according
to specification
• Cleaning sequence controller type DFC-08M in IP65 enclosure









pdf icon Print / Download Nederman Dantherm MJC 132/66/5-4 Dust Extractor Datasheet

Additional files

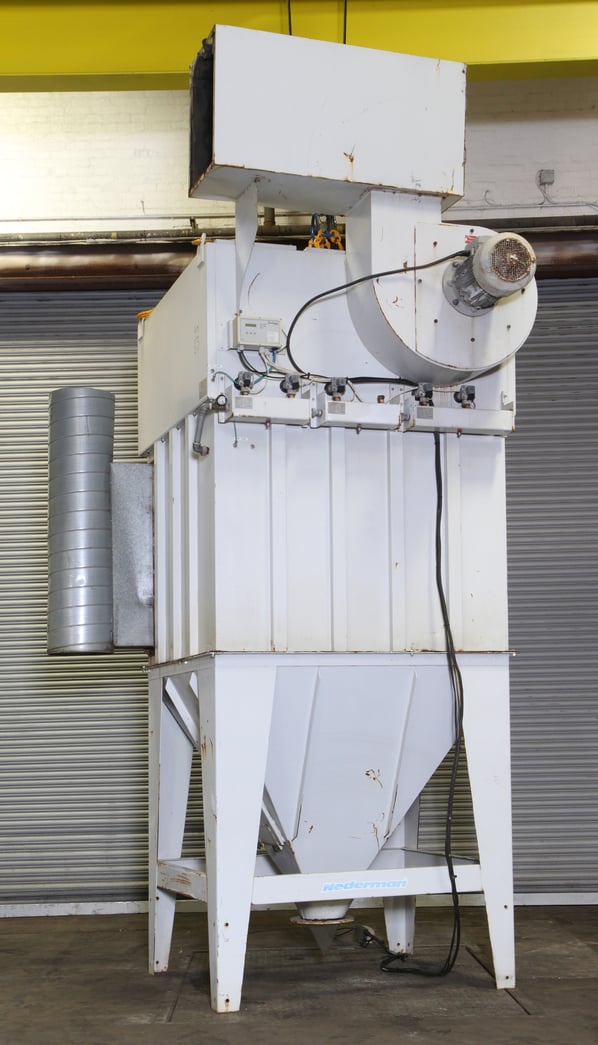

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
