Machines & equipment for sale

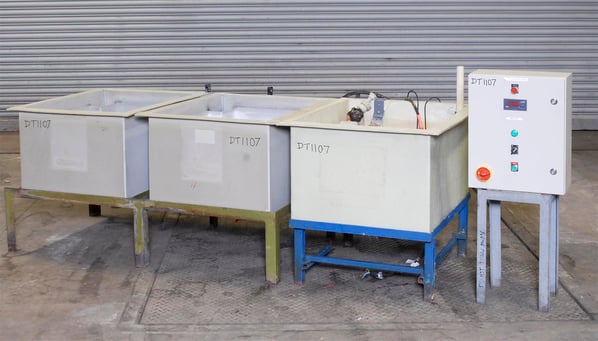

Plastic Construction Ltd 3 stage hot wash and twin rinse cleaning line.

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
DT1107
Manufacturer
Plastic Construction Ltd
Model
3 stage hot wash and twin rinse cleaning line.
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
3 off 600 x 760 x 460
Process Stages
3 stage process line
Other Info
Stand mounted for ease of use
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
2350 x 870 x 770

Description

A custom specified custom hot wash and twin rinse cleaning line.

The system was commissioned as a post NDT wash line with the following specifications:

600 x 760 x 460 mm 3 tank wash system

Tank 1 - Heated polypropylene tank , with low level protection, bottom drain, overflow, air agitation pipe, polaris PTFE electric heater, separate control panel with digital temperature control and weir chamber with surface oil skimmer.

Tank 2 - Cold towns water rinse tank with  bottom drain, and overflow.

Tank 3 -  Cold towns water rinse tank with  bottom drain, and overflow.

With the good chemical resistance of polypropylene, other processes can be undertaken in this simple arrangement such as chemical stripping, etching and pickling.

pdf icon Print / Download Plastic Construction Ltd 3 stage hot wash and twin rinse cleaning line. Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
