Airedale CUS5 – 10kW Refrigerated Condensor Unit.

Used / Second Hand

Run & Checked Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
CT497
Model
CUS5
New or Used
Used (Second Hand)
Ave. cooling capacity
10kW in an ambient of 30C
Ave. Water Flow Rate
N/A
Other Info
Refrigerated condensor unit
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
165
External Dimensions (WxDxH mm)
1000 x 1400 x 725mm

Description

Airedale CUS5  – 10kW in an ambient of 30C refrigerated condensor unit.

Designed and optimised for use with R407C refrigerant gas, this range of air cooled condensing unit and heat pumps with a range of 10kW in cooling mode. Head pressure control and mains isolator as standard, with a small footprint and slimline design.

The large surface area coil of the CUS5 is ideally positioned to optimise airflow and heat transfer. The unit features axial flow fan assembly with low noise sickle type blades and inlet ring. External rotor motor allows for the use of a low power output, single phase, speed controllable motor to power the fan.

The unit is fitted with a thermostatic expansion valve and a check valve assembly to prevent short circuiting of refrigerant, together with a large capacity suction accumulator.

BENEFITS

  • Head pressure control optimising performance
  • Microprocessor system allows indoor unit to be matched to CU, communication via 2-wire link
  • Hot gas bypass valve for capacity control – this modulates down to 40% of full capacity
  • External rotor motor allows use of low power output single phase speed controllable motor with inbuilt thermal overload
  • Thermostatic expansion valve and check valve assembly prevents short circuiting of refrigerant
  • Scroll compressor for reduced sound, higher efficiency and lower electrical starting currents (CUS5 )
  • Head pressure control optimising performance
  • External rotor motor allows use of low power output single phase speed controllable motor with inbuilt thermal overload

SPECIFICATIONS

REFRIGERATION

Heat Pump Each unit is fitted with a thermostatic expansion valve and a check valve assembly to prevent short circuiting of refrigerant, together with a large capacity suction
accumulator and a reversing valve. A factory set defrost switch facilitates defrosting of
the outside coil when in heat pump mode.
Factory set HP/LP pressure switches are fitted, with manual reset high pressure cutout
and automatic reset low pressure cut-out.
A bi-directional filter drier is supplied loose for on site installation.

ELECTRICAL

Weatherproof control panels are accessed via a lockable panel and contain the
necessary contactors, sub-circuit protection and terminals .
All wiring is colour coded and numbered for identification. All units are wired in
accordance with current local and European standards.

HEAD PRESSURE CONTROL

Head pressure is maintained by a factory fitted, pressure actuated head pressure
controller which varies the speed of the fan to provide optimum head pressure control
under varying ambient conditions.

PLEASE NOTE This is a refrigerated condensing unit only and external pumping and control will be required for a full system.







pdf icon Print / Download Airedale CUS5 – 10kW Refrigerated Condensor Unit. Datasheet

Additional files

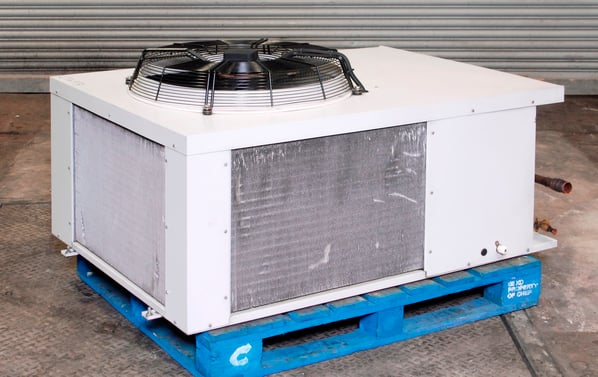

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
