Walther Trowal /Rosler Effluent Lift Tank

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Run & Checked Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
VT1071
Manufacturer
Walther Trowal
Model
Lifting station
New or Used
Used (Second Hand)
Capacity
Ø535 x 485mm
Type
Effluent transfer and storage tank
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
55kgs
External Dimensions (WxDxH mm)
Ø555 x 760mm

Description

Mass finishing process water lifting station.

The lifting station can be utalised in one of two ways, either as a transfer station for transporting locally the effluent from the finishing machine to a remote water treatments system, or as a recirculation tank to hold a buffer of treatments and compound  process water which can be returned under spray to the process bowl.

Water recycling:

The recycling of the process water from the finishing process does not only reduce the consumption of water (up to 98%), but it also reduces the usage of compound (up to 90%). In addition, it reduces the cost of waste disposal.

Lifting tank:

The lifting station is a low height robust storage tank made from polyethylene with an angled bottom. The tank is designed to offer gravity feed with pumped return.

Equipment included:

Diaphragm pump, compressed air diaphragm pump which is a self priming high lift mechanical pump for the transfer of the contained solution/sludge.

Coarse pre-filter, mesh basket inlet for the removal of large solids that may become present in the returning effluent stream.

Level pump control, through twin floatswitches which will stop and start the diaphragm pump and the process requires

Motorised paddle, a .37kW geared paddle motor to maintain any solids, fines or chemistry in suspension within the solution whilst within the tank.

pdf icon Print / Download Walther Trowal /Rosler Effluent Lift Tank Datasheet

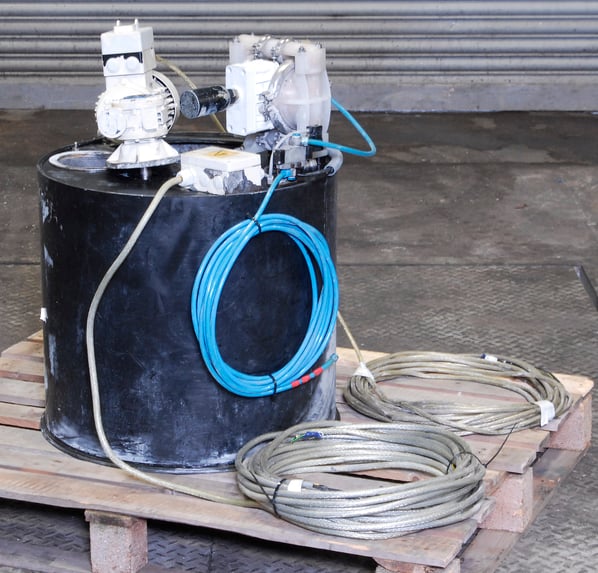

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
