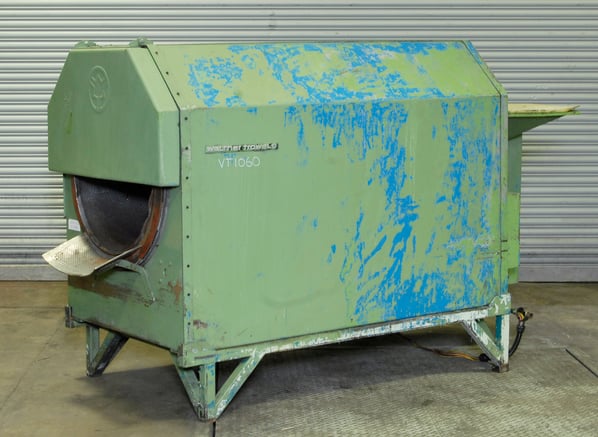

Walther Trowal DLT 4 Rotary Dryer

Stock No
VT1060
Manufacturer
Walther Trowal
Model
DLT4
Year of Manufacture
1980 // 81
Serial
04376 // 11.251
New or Used
Used (Second Hand)
Capacity
1,000 (kg/h)
Type
Continuous parts dryer
Other Info
High throughput machine
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
822kg
External Dimensions (WxDxH mm)
1100 x 2600 x 1650/2000mm

Description

This second hand Wheelabrator Walther Trowal DLT4 parts drier is for the drying of mass produced parts on a continuous basis. Ideally suited as a secondary process after mass parts finishing in vibratory and high energy systems.

After the finishing process, the finished, but wet parts must normally be dried. With  the Walther Trowal rotary drum type driers of the model range DLT, the parts are gently and stain free dried in a heated drying medium consisting of corncob, ground walnut shells or wood chips.

- For large quantities of small parts, i.e. flat bulk parts.
- Especially suited for drying of cup-shaped parts.

Functional principle

The parts are transported through a rotating screen drum in a continuous mode. The drying of the parts takes place with heated drying medium.

- Electrical heating with variable temperature adjustment.

- Built-in rotating screen drum for separating the parts from the drying medium.

- Automatic return of the drying medium to the heating zone.

- Travel (heating) time adjustable from 2 to 4 minutes.

- Continuous operation facilitates the linking of the drying process with production stages prior to and after drying.

DLT 4 Specification

Max. heating capacity (kW) 10
Power of main drive (kW) 0.37
Max. parts throughput's (kg/h) 1,000
Rotational drum speed (RPM) 3.5/7
Barrel diameter x length (mm) 840x1,700
Hopper chute dimensions(mm) 480 x 330mm (inlet - 180mm Ø)
Screen drum ø x length (mm) 660Ø x 700mm depth
Screen drum- perforation (mm) 6
Weight, empty (kg) 822



pdf icon Print / Download Walther Trowal DLT 4 Rotary Dryer Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
