Drake Power Systems 5000 Amp 35 Volt Saturable Reactor Rectifier
- Stock No
- Drake Power Systems
- New or Used
- Used (Second Hand)
- - 35V
- - 5000A
- Other Info
- 3ph / 50Hz
- Our Central Warehouse, Aldridge, UK
- Weight (kgs)
- External Dimensions (WxDxH mm)
- 1650 x 1600 x 2360mm
TRANSFORMER/RECTIFIER TECHNICAL SPECIFICATION.
Control: Saturable reactor (transductor) controlled, to give current regulated output control 5%-100% range
Rectifier Type: Fan assisted silicon diode, full wave rectification, bridge connected, 6 Pulse configuration
Output DC: 5000A 0-35V DC.
Input AC: 415-440VAC 3 Phase 50/60Hz +\- 10%.
Control Supply: 240VAC 1 Phase (derived internally)
Input Current: 291.0A @ 415V
Input Power: 209.5 kVA
Dimensions: WDH 1650 x 1600 x 2360mm
Controls: (Inside rectifier enclosure) Input main contactor, Fan overload protection circuit.
Controls: (Front of enclosure ) ‘Mains on' Indicator Lamp, 'DC Live’ Indicator Lamp, ‘Start / Stop' Pushbuttons, ‘Set Current’ control Knob.
Parallel operation: The saturable reactor control circuit is designed so parallel operation is achieveable, without any need for current sharing circuits. Each unit has inbuilt current limit so overlaoding in parallel operation is impossible
Instruments: Analogue DC ammeter scaled 0-5000 ADC
(Front of enclosure) Analogue DC voltmeter scaled 0-40 VDC

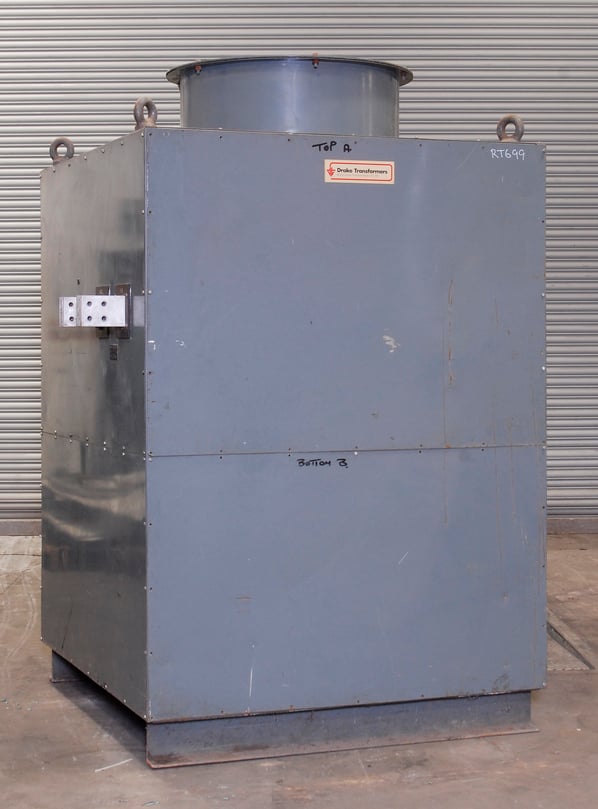

General Construction: Consisting of a standard floor mounted steel enclosure with top mounted cooling fans. With hinged opening front doors for ease of access. Enclosure fitted with channel under-base for ease of moving. All transformers and electronic equipment suitably protected against corrosive environments. Operating Conditions: Indoor use in up to a 40°C ambient temperature.
Output Connections: Heavy duty aluminimum busbars 2 x 150mm x 12mm .
Heat Dissipation: 2100 Watts.
Recommended supply: Input Fuse: 63A (IEC269/ BS 88) Fuselink.
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
