GWK Logotherm Hot Water Controller Heater

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Run & Checked Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
TT086
Model
Teco 300
Year of Manufacture
1997
Serial
14 1938 10
New or Used
Used (Second Hand)
Work Envelope (WxDxH mm)
6kW
Process Stages
Indirect water heater
Other Info
Self contained unit
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
60kgs
External Dimensions (WxDxH mm)
200 x 660 x 480mm

Description

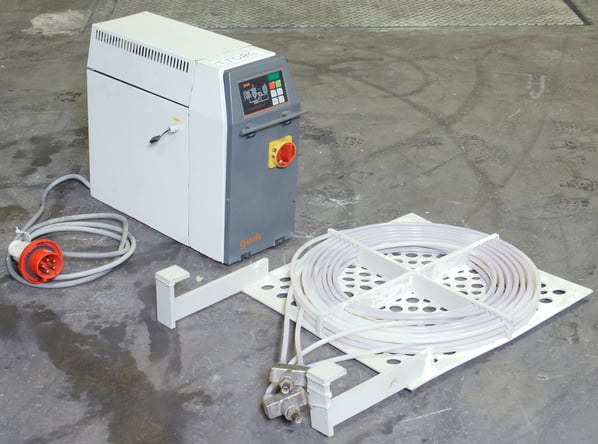

GWK Logotherm Teco 300 process water heater with inbuilt control and pumped recirculation.

Features

• Self-optimising gwk-logotherm micro controller with high control accuracy
• Touchscreen for log in, control and monitoring of process parameters
• Intuitive operating interface with user-friendly menu navigation
• Measuring, indication and monitoring of the flow rate
• Integrated operating and service information
• Wearless, energy-saving solid state heating control
• Return temperature indication
• Continuous monitoring of process parameters
• Splash proof electrics
• Ready to connect with cable
• Housing: RAL 7035 light grey,

Medium, water
Temperature max. (°C) 95
Pump capacity max. (l/min / bar) 60 / 3,8
Heating capacity (kW) 6
Weight (kg) 60

Dimensions in mm (W x L x H)200 x 660 x 480mm

Please note PTFE coil available separately

pdf icon Print / Download GWK Logotherm Hot Water Controller Heater Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
