Dreher VT5 / VT Rotary Barrel Tumbling Machines

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Run & Checked Price [?]
£ Login or Register for price
Availability:
4 In stock now
Stock No
VT1037S
Manufacturer
Dreher
Model
VT5 / VT
Year of Manufacture
1986
Serial
Various
New or Used
Used (Second Hand)
Capacity
5 x 45 litre barrels
Type
Common rail Tumble barrel M/C
Other Info
Multiple units available from stock
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
400kgs without barrels
External Dimensions (WxDxH mm)
3800 x 1330 x 1070mm

Description

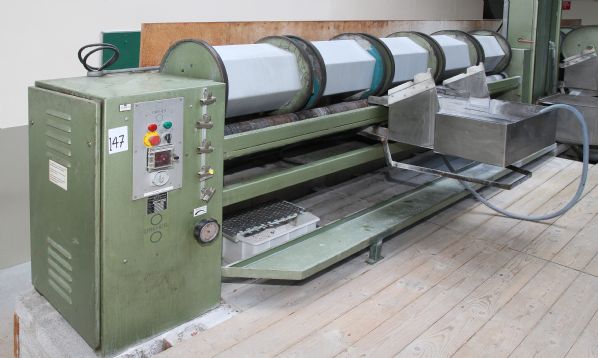

This second hand Dreher VT5 - VT is for the wet processing of components to deburr, smooth, descale and polish mass and precision parts using the DREHER barrel finishing technology.

The Dreher is an Ideal machine for deburring, colouring & ball burnishing etc. of steel, zinc die-castings, non ferrous metals & white metal parts.

It offers ease of handling via the uniquely designed work station unload capability which allows the barrels to be loaded and unloaded whilst the machine remains running, without any interruption of the other barrel in operation.

Various barrel styles and sizes are available from stock, ranging from 22 liter / 5.8 gal to 45 liter / 11 gal with 1-4 compartments

Feature include:

Control panel with 0-100 hours process timer
Variable speed drive 13-28rpm
Unload & rinse attachment
Including 5 barrels - Constructed from Polypropylene
large barrels 310 A/F x 500mm wide twin compartment
Overall size 3759 x 660 x 1321mm high

Details:

Total Volume: 4.8 Cubic Feet,  45 litres
Barrel Dimensions: 10"x 20"
Tumbling Speed (Variable): 16-36 RPM


pdf icon Print / Download Dreher VT5 / VT Rotary Barrel Tumbling Machines Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
