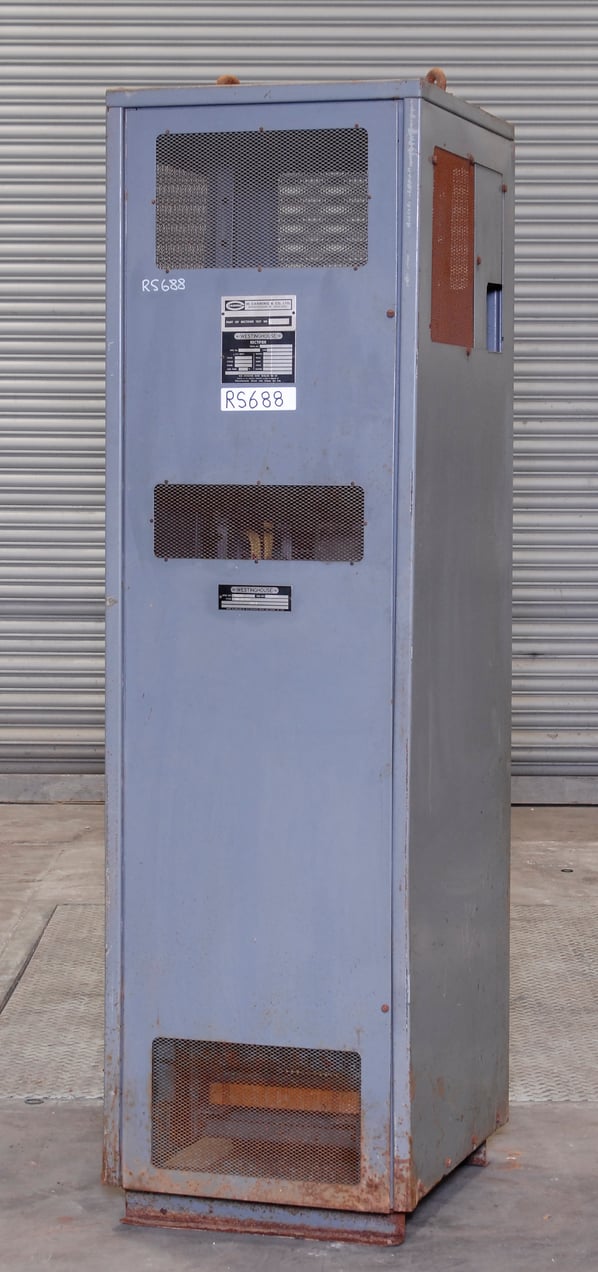

Westinghouse SNA 500 Amp 60 Volt Transforming DC Rectifier
- Stock No
- SNA 60/500
- New or Used
- Used (Second Hand)
- 60 Volts
- 500 Amps
- Other Info
- Multiple units available
- Our Central Warehouse, Aldridge, UK
- Weight (kgs)
- External Dimensions (WxDxH mm)
- 690 x 560 x 2070mm
Westinghouse Air cooled heavy duty silicon diode 500 Amp 60 Volt transforming rectifier.
Predominantly used in the electro plating, electro forming, electro paint, electro polishing and motor control industries, to provide a stable DC current supply.
These units can be fitted with regulating transformers to the incoming supply to give variable voltage output or couple with a thyristor controller to regulated both the amps and volts.
These units can be mated to a matching rectifier in series or parallel to offer and output of either 1000 Amps at 60 Volts or 500 Amps at 120 Volts respectively or 3 units at 1500 Amps at 60 Volts or 500 Amps at 180 Volts etc
Low ripple D.C. over the full operating range.
Designed for reliable service and continuous duty.
Economic operation by virtue of high efficiency copper transformer coils.
Regulating transformer, mains transformer, silicon-stack, overload and thermal protection devices, copper bus-bar connection and multi tap input connector are all mounted on a sturdy steel frame within the self contained rectifier cabinet.
Good air circulation through the silicon stack, mains transformer, and other components is achieved by an open base, canopy top, cabinet design.
Bus-bar terminations for the rectifier pass through insulated supports positioned in the top, or rear, to suit individual requirements.
The rectifiers are suitable for crane and fork-lift transport.
A.C. Input 3x380V, 3x400V, 3x415V, 3x440V +/- 5% 50Hz
Standard rectifiers are suitable for continuous duty in an ambient temperature of up to 35°C provided the rectifier is sited to allow free air circulation and at a maximum height of 1000 M above sea level.
Standard rectifiers: 5% or better over the full range of operation.
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
