Wild Barfield Vertical Retort 3660 VFC Furnace

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
OS1278J
Manufacturer
Wild Barfield
Model
3660
Serial
1248
New or Used
Used (Second Hand)
Internal Size (WxDxH mm)
Ø915 x 1525 mm
Max Temp
650°C
Other Info
Roof mounted re-circulation fan
Location
Stored for convenience of sale, Aldridge, West Midlands
External Dimensions (WxDxH mm)
approx 3700 x 3400 x 3150 mm

Description

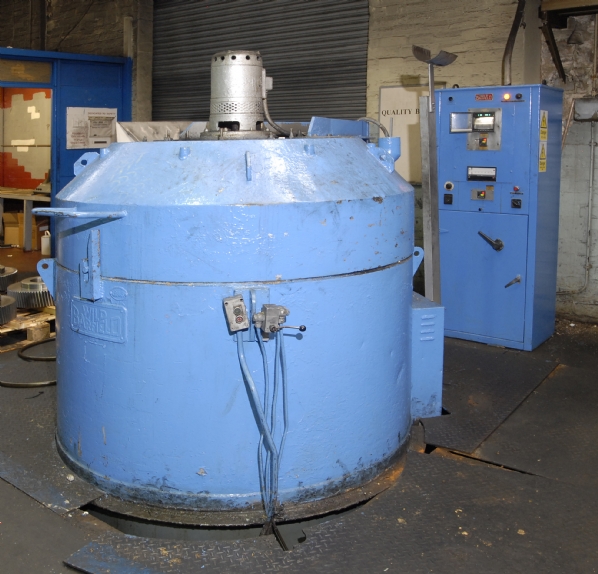

This is a second hand Wild Barfield (Almor) top loading VFC furnace which is ideal for hardening, normalising and annealing of shafts and general components.

The components to be heat treated can be suspended from jigs or placed in a single charge basket. The configuration of the furnace allows direct loading of components from above with a hoisting unit meaning singular heavy parts are easily catered for.

Thin parts have less tendency to distort when quenching is a secondary operation with this vertical loading arrangement.

The design of this furnace is simple and easy to maintain, yet has proven to be very robust even in the most arduous of heat treatment environments.

Features include:-

- Programable temperature control
- Intergrated door safety cut out switch
- Transformed power
- Thermal brick lining
- Swing aside door with easy lid mechanism
- Long life nickle-chromium elements
- Electrically heated floor standing
- 650oC standard maximum temperature
- Low thermal mass insulation with cast work support and throat in base
- Rapid heating with forced air circulation
- Excellent temperature uniformity over the range 100oC–650oC
- Controls:
Separate control panel:
- P.I.D. digital temperature controller
- Chart recorder with digital readout
- Excess temperature cut out instrument
- Main isolator
- Fuses and circuit breakers

pdf icon Print / Download Wild Barfield Vertical Retort 3660 VFC Furnace Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
