Rosler Flighted Transfer Conveyor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Run & Checked Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
MS350J
Manufacturer
Rosler
Model
R360/8250 FBT
Year of Manufacture
1996
Serial
15494/96
New or Used
Used (Second Hand)
Capacity
365mm wide belt
Other Info
Suitable for inclined conveyancing
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm)
8350 x 750 x 650mm*

Description

Rosler flighted belt conveyors are an ideal way of conveying products at angles, which could cause the product to slide or roll back down the conveyor. By incorporating a side wall, bulk type material and small components can be conveyed at an angle without the product over spilling.

Flighted Inclined Belt Conveyor 365mm wide x 8350mm long, the belt has a central tracking strip and comes with 5mm high flights @ 300mm pitch.

Complete with fixed side guides 30mm high which run the full length of the conveyor.

The conveyor is complete with adjustable stands, ans a fixed speed shaft mounted geared motor end drive unit.

pdf icon Print / Download Rosler Flighted Transfer Conveyor Datasheet

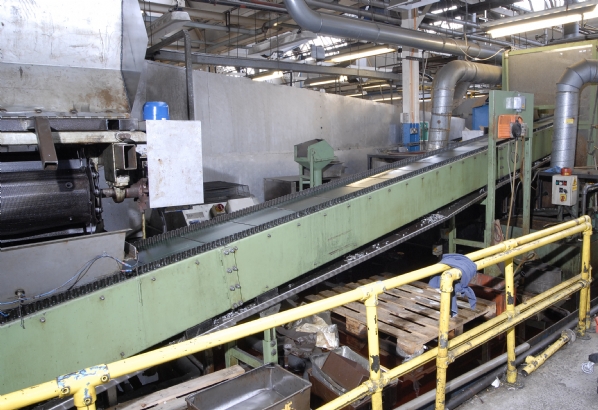

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
