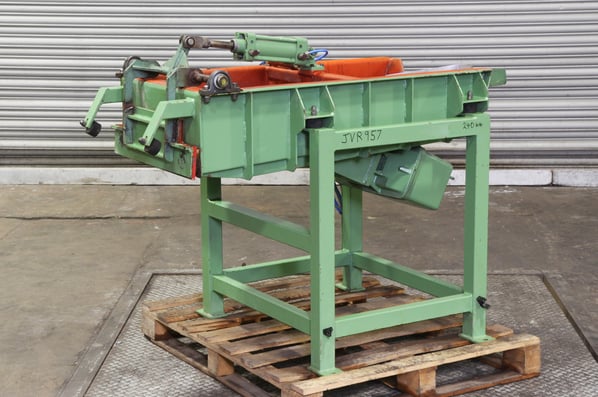

Rosler Induction Vibratory Feed Hopper

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Run & Checked Price [?]
£ Login or Register for price
Availability:
2 In stock now
Stock No
JVR957
Manufacturer
Rosler
Model
R 185 PR-So
Year of Manufacture
1997
Serial
15600/96/12 // 15598/96/12
New or Used
Used (Second Hand)
Type
Vibratory
Other Info
2 Units available from stock
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
240kgs
External Dimensions (WxDxH mm)
840 x 1550 x 1100mm*

Description

A rosler Induction Vibratory Feed Hopper with closeure gate for the controlled feed and payout of mass small parts into secondary processes

The vibrating deck acts as an intermediate storage and distribution hopper by means of both an induction vibratory motor and pneumatic closure gate.

The effect of the vibration causes the components to level out into a uniform layer and transfers them in a steady linear motion across the deck.

With the closure gate in play rapid and accurate amounts of components can be transferred then held to offer specific weights or quantities.

The induction motor can also be readily fitted with an inverter speed control to further enhance the speed range of which the deck can transfer its payload.

Typical applications may include:

Controlled parts loading into vibratory finishing equipment such as process bowls and dryers
Controlled parts loading into wash and dry tunnels
Controlled parts loading onto mesh belt furnaces
Controlled feed onto weigh check systems
controlled feed into batch process machinery
Controlled loading into plating barrels
Controlled loading into belt and barrel blast machinery.

Details

Work envelope - 535 x 1070mm
Ext dims - 840 x 1550 x 1500mm
Media Entry/Loading Height- 890mm // 1300mm
Media Exit/Offloading Height- 700mm // 1020mm
Supply voltage 415v / 50Hz


pdf icon Print / Download Rosler Induction Vibratory Feed Hopper Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
