Airtech Dry Back Spray Booth

New

Price [?]
£ Login or Register for price
Guarantee
1 year manufacturer guarantee
Availability:
In stock now
Stock No
GR0012
Manufacturer
Airtech
Model
DRY BACK FULL HEIGHT SPRAY BOOTHS
Year of Manufacture
Nov 2012
New or Used
New
Work Envelope (WxDxH mm)
1140 X 600 X 2200 mm
Other Info
UNUSED Riley spray booth
External Dimensions (WxDxH mm)
1230 x 1150 x 2600mm high

Description

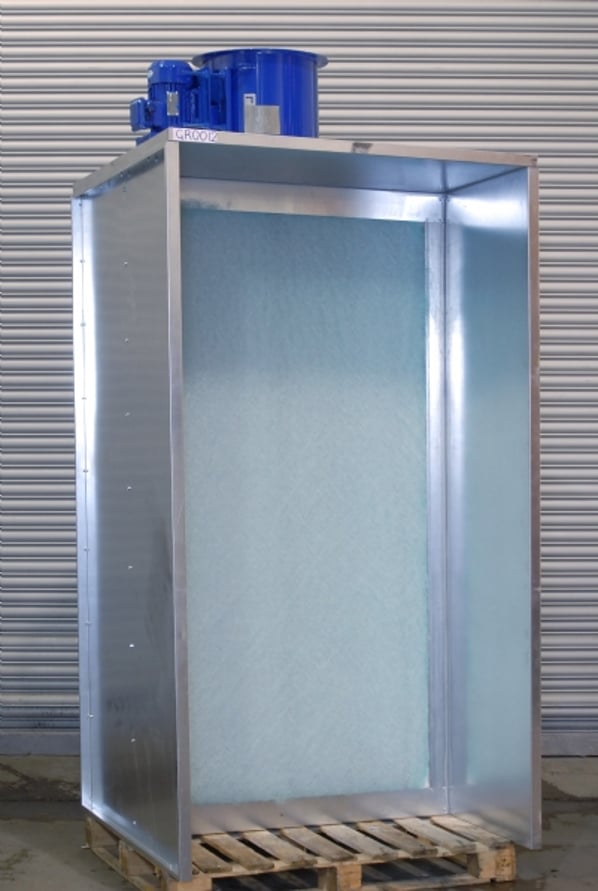

The Riley AirTech powder and wet type dry back extraction booth. It comprises a spray canopy designed for the application of dry powder and wet paints.

The system provides a safe, clean and efficient working environment in a simple yet effective system that is easy to install.
.
The full face model allows taller components to be directly placed on the floor or be suspended from a trolley or hanging rail. The unit is complete with a matching Ø400mm paint fan and starter.

These booths can be used with either Andrea dry back filter paper or Brinks mat roll filter media.

Specification:

Belt driven Ø400mm fan
Face velocity 1.5 m/s
Working envelope 1140 x 600 x 2200 mm
Working depth up to 600mm
Overall dimensions 1230 x 1150 x 2600mm high



pdf icon Print / Download Airtech Dry Back Spray Booth Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
