Donaldson Torit (DCE) UMA 102 K3 Unimaster Dust Control Plant

DCE UMA 102 K3 Unimaster Dust Control Plant

This pre owned Unimaster 102 K3 dust collector from Donaldson Torit is designed to maximize dust collection and the life of the collector components for years of extended service, the Unimaster collector’s compact design and quiet operation provides efficient, trouble-free service.

A self-contained collector with everything needed to begin collecting dust, the Unimaster comes complete with fan and fan motor, automatic shaker and shaker motor, and system controller making installation quick and easy. Since the automatic shaker cleans the bag filters, there is no need for expensive compressed air. Ideal for intermittent operations in plant processes, the Unimaster can be used as a central system or at the point of dust generation.

Design features

• Compact Design
Minimises floor space and fits in virtually any plant layout.
•Versatility
To suit a variety of dust collection applications
•Powerful
1.5kw fan set
•Quiet & Efficient Operation
Motors and fan are enclosed in collector housing to minimize noise.
•Fitted ATEX rated explosion relief panel
For use with potentially dangerous explosive dusts
•Easy Maintenance
•2³ft waste collection bucket
•Quick-Release Lever
Allows for easy removal and maintenance of bin.
•Bucket balance
Allows the use of bin liners
•Inlet Deflector
Knocks down larger particles into the hopper reducing bag abrasion and increasing bag filter life.
•Heavy-duty flexible metal inner bag coils
Inserted into filter bags keeps bags open to maximize airflow and assist in knocking dust off during cleaning cycle.
•Bag-Release Screws
Allow for easy removal of bags.
•Silencer box with weather cowl exhaust for out door siting.
Weight 190kg

Stock No: EQ991
Manufacturer: Donaldson Torit (DCE)
Model: UMA 102 K3
Year of Manufacture: 1999
Serial: 647641
New or Used: Used (Second Hand)
Approx Duty CFM / M³/Hr: Ranging from 200-1000cfm (340-1700m³ )
Filter Area ft² / m²: 100 / 10
Other Info: Universal appeal and application
Refurbished Price: Login or Register for price/quote.
Run & Checked Price: Login or Register for price/quote.

Print / Download Donaldson Torit (DCE) UMA 102 K3 Unimaster Dust Control Plant Datasheet

Additional Pictures

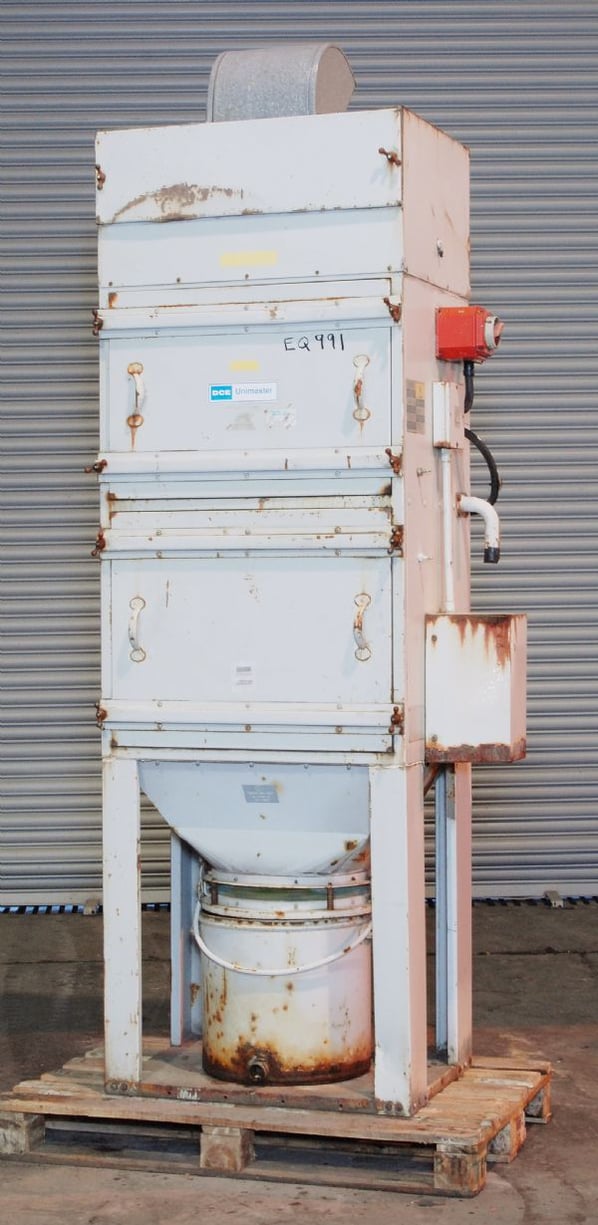

DCE UMA 102 K3 Unimaster Dust Control Plant

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
