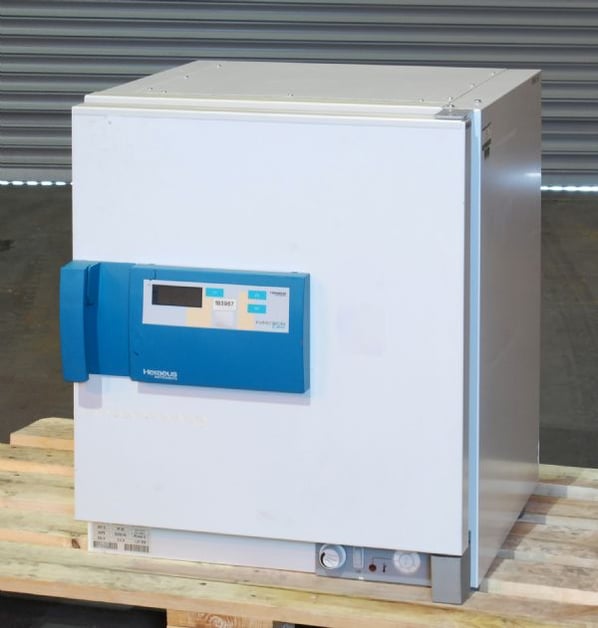

Heraeus Instruments UT6 Laboratory Oven
This used Heraeus Function Line UT6 recirculated hot air oven provides a microprocessor controlled automatic programme feature. All steps in the program, from the heating-up and equalization time to the quench and cooling-down time, run automatically.
The user simply selects fixed program steps to set up the process to be carried out without any operator supervision.
The microprocessor-controlled temperature controller with digital display and integrated inbuilt timer function has a time range of up to 99 hours 59 min., standby function and preselected program components safeguards the fully automatic sequence of the process.
The microprocessor-controlled temperature controller maintains precise temperature at a set value. The standard adjustable independent mechanical upper temperature protection device ensures additional safe working procedures for:
•Curing
•Drying
•Bonding
•Hot air sterilization
•Destruction of microorganisms
•Thermally limited sterilization of liquids
BENEFITS
• Microprocessor temperature controller for accurate and reproducible temperature settings
• 24 hour timer for preheating or timed shutdown
• RS 232 interface for documentation
• Smoothly adjustable valve for fresh and exhaust air regulation
• Two tilt-proof, chromium-plated, wire-mesh shelves*
Technical data T6
Outer dimensions
Depth mm/inch 540 / 21.3
Width mm/inch 552 / 21.7
Height mm/inch 663 / 26.
Internal dimensions
Depth mm/inch 370 / 14.6
Width mm/inch 352 / 13.9
Height mm/inch 424 / 16.7
Volume l 57
Shelves (wire mesh shelves) 2
Maximum Qty. 10
Maximum load per tray kg 20
Weight (empty) kg 40
Operating temperature from TA1) +10 °C to °C 250
Air exchange rate per hour 8
Electrical data (rated values)
Rated voltage (1N/PE) V 230
Power input kW 1.22
- Stock No
- OQ1090
- Manufacturer
- Heraeus
- Model
- UT6
- Serial
- 50042297
- New or Used
- Used (Second Hand)
- Internal Size (WxDxH)
- 360mm x 337mm x 465mm
- Max Temp
- 250°C
- Other Info
- As new condition
- Refurbished Price
- Login or Register for price/quote.
- Run & Checked Price
- Login or Register for price/quote.
Print / Download Heraeus Instruments UT6 Laboratory Oven Datasheet
Heraeus Instruments UT6 Laboratory Oven
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
