Lenton Furnaces High Temp Annealing Drop Bottom Furnace

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Run & Checked Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
OP989
Manufacturer
Lenton Furnaces
Model
Gas tight elevator hearth furnace
Year of Manufacture
1999
Serial
5890
New or Used
Used (Second Hand)
Internal Size (WxDxH mm)
Ø500 x 500
Max Temp
1100°C
Other Info
Gas atmosphere furnace
Location
Our Central Warehouse, Aldridge, UK

Description

Lenton Furnaces Elevator hearth furnace designed for applications such as High temperature annealing, Nitriding, hardening,  de-bonding and sintering of materials.

The work is contained within an inconel 601 bell type retort, with a maximum load of 100kg where a laminar flow of atmosphere gas is passed across the product.

The furnace is electrically heated with air / atmosphere circulation, 3 zone control, multi programme capability, atmosphere flow control, integrated top hat hoisting and with a built in rapid air quench facility.

Raising and lowering of the hearth is by a linear actuated elevator platform.

Features

  • Usable gas tight retort dimensions: 500mm diameter x 500mm high
  • Maximum temperature 1100°C.
  • 2 stage gas atmosphere injection to the chamber currently set for Nitrogen and Nitrogen/Hydrogen mix with a separate Nitrogen gas seal for the hearth for nitriding.
  • Element type: resistance wire spiral supported in grooved ceramic side panels, arranged in a hexagonal formation to surround the retort and reduce distortion and ensure even heating and long life.
  • Balanced powered twin flues with controlled cool facility.
  • Insulation: low thermal mass insulation combined with nickel chromium tungsten iron alloy hearth
  • 415-240 volts or 380-220 volts three phase and neutral, 41kW heater power.

Raising and lowering of the hearth is by a linear actuated elevator platform

Usable gas tight retort dimensions: 500mm diameter x 500mm high Maximum temperature 1100°C.
2 stage gas atmosphere injection to the chamber currently set for Nitrogen and Nitrogen/Hydrogen mix with a separate Nitrogen gas seal for the hearth for nitriding.

Construction

Element type: resistance wire spiral supported in grooved ceramic side panels, arranged in a hexagonal formation to surround the retort and reduce distortion and ensure even heating and long life.
Balanced powered twin flues with controlled cool facility.
Insulation: low thermal mass insulation combined with nickel chromium tungsten iron alloy hearth

415-240 volts or 380-220 volts three phase and neutral, 41kW

pdf icon Print / Download Lenton Furnaces High Temp Annealing Drop Bottom Furnace Datasheet

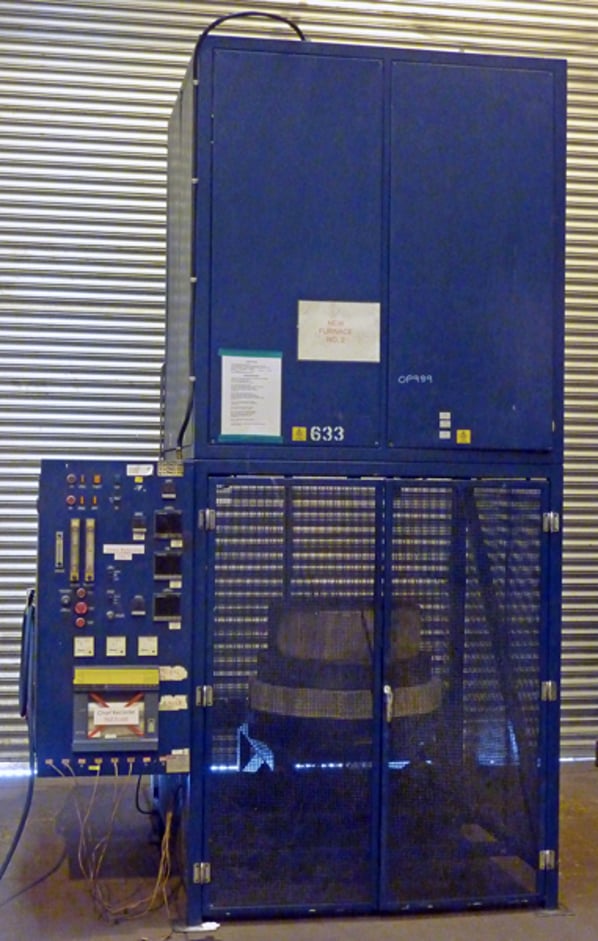

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
