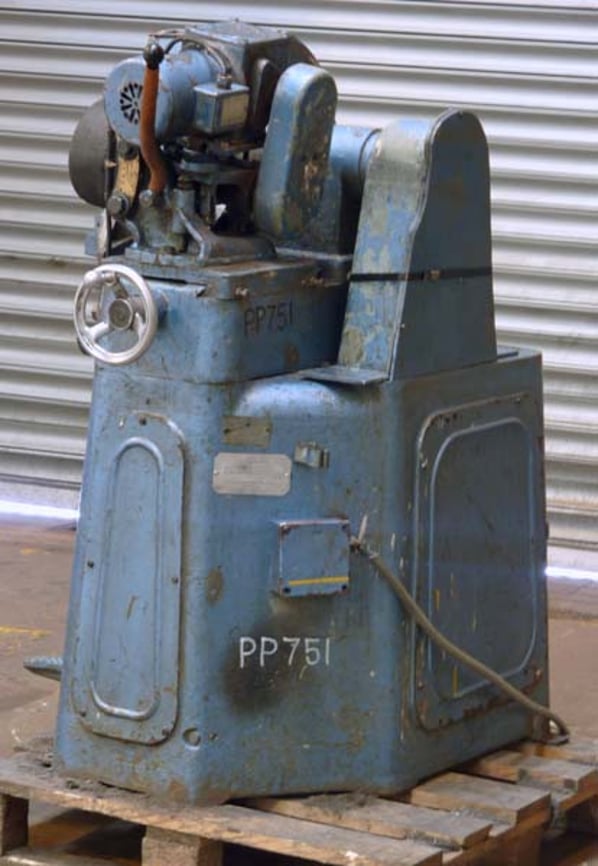

W Canning Canning Model 2396 Centreless Polisher

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Run & Checked Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
PP751
Manufacturer
W Canning
Model
2396
Serial
3029
New or Used
Used (Second Hand)
R.P.M.
1500
Other Info
Capacity up to 28mm
Location
Our Central Warehouse, Aldridge, UK

Description

A second hand automatic Machine for the Polishing and finishing of cylindrical parts. Centreless Polishers are designed for use on tubes, round bar, rolls, cylinders, pins, shafts,hollow sections, guide rails, extruder screws, billets, etc.

The Canning Model 2396 centreless is a Single head 100mm wide centreless dry operation polishing and buffing machine designed with the flexability of when fitted with an optional abrasive belt linishing and banding attachment, multiple surface finishes can be achieved from the grinding of black stock bar through to mirror finishing of ground stock making this a truely universal cylindrical process finisher.

DESCRIPTION AND APPLICATIONS

This is one of the most robust and popular centreless grinding, finishing and polishing machine for tube, bar, shafts, pins, ever made . With the space saving vertical belt attachment option fitted it can be used with a number of different abrasive beltssuch as carbide and oxides for grinding, nylon belts for satin finishing, engineered belts for semi polishing and felt or cork belts for polishing

FEATURES

Diameter range: 3 mm to approx. 28 mm

Taper polishing feature

Reversing action for touch up or multiple passes or selective polishing

Head drive motor: 3kw

Feed speed 0 - 3 m/min:

Max. tube weight: Approx. 20 kg

W x D x H -

670 x 960 x 1200mm (the width includes the stainless steel bracket on the side, without the bracket is measures 610mm)

OPTIONAL EXTRAS

Banding attachment with an abrasive belt size: 1200 - 2700 mm long x 100 mm wide

Range of contact wheels from very soft to very hard

Stand alone dust extractor either wet or dry

Tube extension supports

Automatic polishing compound application

BENEFITS

This 2396 has the same controls as heavy duty centreless machines allowing you to produce virtually any finish to any cylindrical product.
Also available from the Canning range are it's bigger brothers the 2397 (75mm) and the 2718 (150mm)

pdf icon Print / Download W Canning Canning Model 2396 Centreless Polisher Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
