Hydrovane Model 128

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Run & Checked Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
MP682
Manufacturer
Hydrovane
Model
128 12807-100
Serial
6HV601101/4/3
New or Used
Used (Second Hand)
CFM/Kw
110cfm 18.5kW
Compressor Type
Rotary vane - hours run 65290
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
425 kgs
External Dimensions (WxDxH mm)
1880 x 850 x 975mm

Description

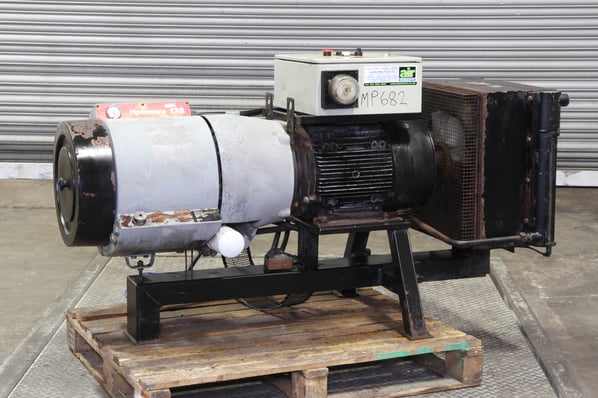

This pre owned Hydrovane PU 128 horizontal open formant (unenclosed) fixed speed compressor is ideal for heavy duty applications, where reduced footprint and low noise levels are key specification criteria.

Basic operation of a rotary vane compressor

Air is drawn in through the intake valve, it is contained between the rotor and the stator wall, the air is compressed by decreasing volume and oil is continually injected to cool, seal and lubricate the compressor.

High pressure air passes into the primary oil separator were the oil returned into the compressor, any remaining traces of oil are removed in a final separator element, providing high quality air.

Air flow is regulated by an inbuilt modulation system before It passes through an air-blast aftercooler, removing most of the condensate that is generated in the compression cycle.

Other advantages to this design of compressor include:

  • The use of white metal bearings instead of roller bearings, ensuring long life. No replacements and reduced maintenance costs.
  • Reduced power consumption and energy costs with the auto start pressure monitor system fitted.
  • The Hydrovane range offer proven, simple and long-lasting technology with fewer moving parts, allowing up to 100,000+ operating hours being achieved with no expensive Air End change or refurbishment.
  • Noise levels as low as 62 dB(A), even in an open format
  • Hydrovanes can be located at the point of use.
  • Slow speed operation resulting in low noise, low stresses and long life.
  • Hydrovane compressed air is clean, dry and pulse free straight from the outlet, with no receiver required as standard.
  • Oil carryover (OCO) is typically less than 3 ppm. Less downstream equipment required.
  • Direct drive, no gears and no belts mean fewer components to maintain, fail or replace, and no power loss maximising energy consumption.
  • Intake modulation control with automatic regulation, the Hydrovane only compresses the air demanded by the system. No wasteful overproduction of air.
  • Common replacement items such as air/oil separators and oil filters are all ‘spin-off /spin-on Delivering quick, cost effective servicing, with minimal downtime.
  • Solenoid control rapidly vents the internal pressure to 2 bar; reducing off load power to as low as 20% as well as lowering the starting current*. Reducing energy consumption.

Hydrovane 128 rotary vane compressor

Approx duty of 110cfm @ 7.5bar
18.5kW motor
415V 3ph 33 Amp current

pdf icon Print / Download Hydrovane Model 128 Datasheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
