Riley Airtech Portable on-site dust extraction unit

Portable Dust Extractor unit

These units are of sufficient capacity to cope with any large scale blasting applications, whilst at the same time being of small enough dimensions and weight to be easily moved into position using vehicles as small as standard Transit sized pick ups. The unit can then be easily put into position using a standard size forklift truck.

Powerful cartridge filter system including:
- 2, 7.5kW fans
- 16 pleated cartridges with total surface area of 1230 square meters
-Reverse air pulse filter cleaning

The unit is primarily designed as a compact and portable unit but can be used statically for other applications when space is at a premium

Unit Specifications:

Footprint – 2500 x 2000 (5 square meters)
Height – 2800mm
Weight - 1500kg
Inlet spigot diameter - 500mm
Extraction power – 2 x 7.5 kW (8000cfm (13600m³/h @ 9”, 10000cfm (17000m³/h) free air)
Power Supply – 32amp 3 phase 4 pin IP67 plug
Air – 6-7 bar 5cfm

Stock No: NS020
Manufacturer: Riley Airtech
Model: ATE 150
Year of Manufacture: New
New or Used: New
Approx Duty CFM / M³/Hr: 8000 cfm @ 9" wg, 10000 cfm free air
Filter Area ft² / m²: 4032ft² / 1230m²
Other Info: Portable on pickup truck and fork lift
Price: Please call on +44 (0) 1922 45 8000

Print / Download Riley Airtech Portable on-site dust extraction unit Datasheet

Additional Pictures

Portable Dust Extractor unit - Top View

Portable Dust Extractor unit

Portable Dust Extractor unit - In transit on pickup truck

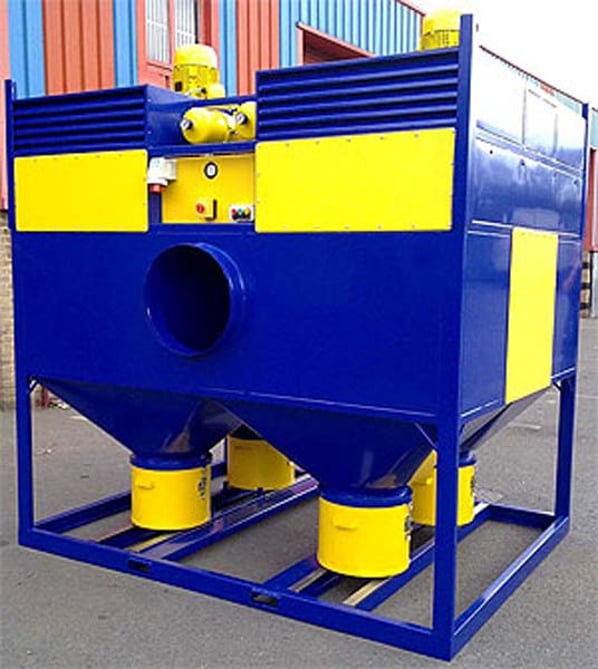

Portable Dust Extractor unit - Being moved by forklift

PHOTOGRAPHS TAKEN PRIOR TO REFURBISHMENT.
