Contracor DBS-200 RC Abrasive Blasting Machine - Blastpack

Brand New

K4 DBS200RC - Extrablast 25

New

Price [?]
£ Login or Register for price
Guarantee
1 year manufacturer guarantee
Availability:
Normally available in 28 days
Stock No
NEW022
Manufacturer
Contracor
Model
DBS-200 RC
Year of Manufacture
New
New or Used
New
Work Handling Method
Manual
Other Info
Part number: 10014

Description

Includes the following component parts:

- DBS 200RC Blasting Machine
- Extrablast-25 40m abrasive blasting hose
- CQP-1 Coupling
- NHP-1 Nozzle Holder
- RTC-6,5 Nozzle

DBS 200RC Specification:
- Maximum working pressure 12 bar (174psi)
- Vessel Capacity 200l
- Working Temperature -10 - +50°C
- Vessel Diameter 609mm
- Vessel Height 1480mm
- Weight 140kg
- Remote Control Device with a pneumatically operated RC main valve

Also includes the following; Screen, Cap, Sand Valve, high performance moisture separator, inspection door, quick hose couplings

Extrablast-25 Specification:
- Interior diameter - 25mm
- Exterior Diameter - 40mm
- Pressure - 12 bar (174psi)
- Length - 40m

CQP-1 Specification
- Used for coupling hoses of internal diameter 25mm

NHP-1 Nozzle Holder Specification
- For use on blasting hoses of internal diameter 25mm
- Material: Nylon
- Has a 50mm thread for nozzle attachment

RTC-6,5 Nozzle Specification
- Venturi Type Nozzle
- Constructed from wear resistant tungsten carbide

To see a full description of the products being offered, and our complete Contracor shot blasting range please visit the following link for our pdf brochure:
http://www.rileysurfaceworld.co.uk/pdf/ContracorUKcat.pdf

pdf icon Print / Download Contracor DBS-200 RC Abrasive Blasting Machine - Blastpack Datasheet

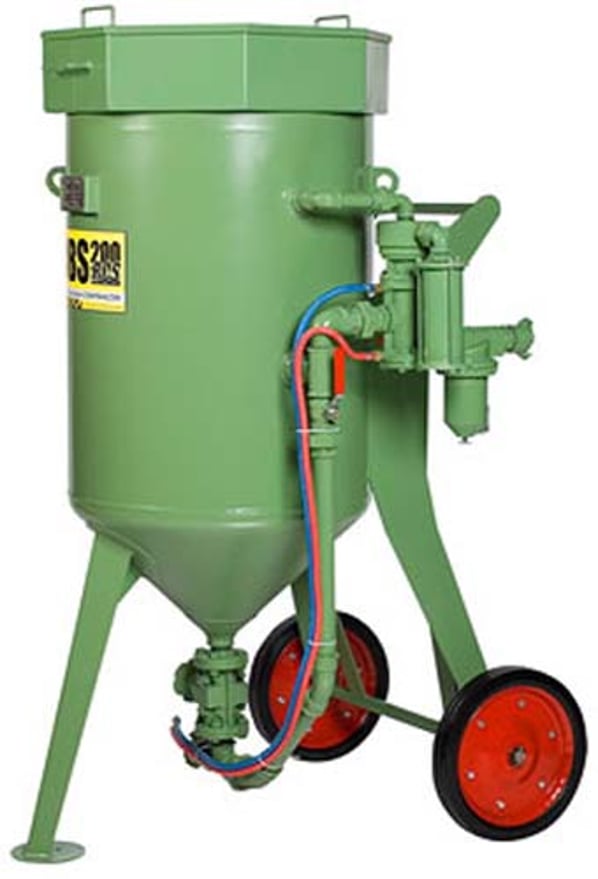

K4 DBS200RC - Extrablast 25
K4 DBS200RC - Extrablast 25

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
