Contracor DBS 100 RC Extrablast 25 Blasting Package

Brand New

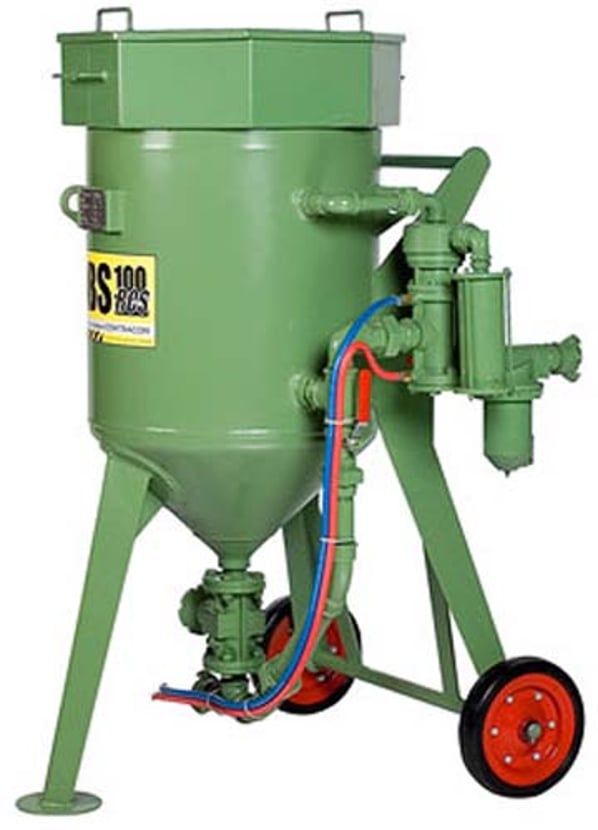

	K3 DBS100RC Extrablast 25 Blasting Package

New

Price [?]
£ Login or Register for price
Guarantee
1 year manufacturer guarantee
Availability:
Normally available in 28 days
Stock No
NEW024
Manufacturer
Contracor
Model
DBS100RC
New or Used
New
Work Handling Method
Manual
Other Info
Part no: 10013
External Dimensions (WxDxH mm)
See NEW machines section for details

Description

Includes the following component parts:

- DBS 100RC Blasting Machine
- Extrablast-25 40m abrasive blasting hose
- CQP-1 Coupling
- NHP-1 Nozzle Holder
- RTC-6,5 Nozzle

DBS 100RC Specification:
- Maximum working pressure 12 bar (174psi)
- Vessel Capacity 100l
- Working Temperature -10 - +50°C
- Vessel Diameter 508mm
- Vessel Height 1226mm
- Weight 110kg
- Remote Control Device with a pneumatically operated RC main valve

Extrablast-25 Specification:
- Interior diameter - 25mm
- Exterior Diameter - 40mm
- Pressure - 12 bar (174psi)
- Length - 40m

CQP-1 Specification
- Used for coupling hoses of internal diameter 25mm

NHP-1 Nozzle Holder Specification
- For use on blasting hoses of internal diameter 25mm
- Material: Nylon
- Has a 50mm thread for nozzle attachment

RTC-6,5 Nozzle Specification
- Venturi Type Nozzle
- Constructed from wear resistant tungsten carbide

To see a full description of the products being offered, and our complete Contracor shot blasting range please visit the following link for our pdf brochure:
http://www.rileysurfaceworld.co.uk/pdf/ContracorUKcat.pdf

pdf icon Print / Download Contracor DBS 100 RC Extrablast 25 Blasting Package Datasheet

	K3 DBS100RC Extrablast 25 Blasting Package
K3 DBS100RC Extrablast 25 Blasting Package

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
