Rosler Continuous Working Loop Belt Blasting Machine
This Rosler / Hunziker Universal Automatic Through Feed Blasting Machine of the SBI-series, is especially designed for the deflashing of shaped parts. The universal application can handle mouldings of different sizes and deflash in bulk. The work parts being processed pass through the feeding system, inlet vibratory tunnel, loop belt in the blasting chamber and outlet vibration chute channel. Parts from the vibratory tunnel are transported from the loop in the blasting chamber where they are turned over several times and at the same time they pass by the injector last pistols along to the poutlet vibration chute. The loop belt drive is infinitely variable. The parts are cleaned from the blast media before discharging by vibrating and air blow-off. The machine is complete with load conveyor, programme control panel, and dust extraction and media recycling equipment.
- Stock No
- SN312
- Manufacturer
- Rosler
- Model
- SBI 1200-S10
- Year of Manufacture
- 2004
- Serial
- 30508/03
- New or Used
- Used (Second Hand)
- Work Envelope (WxDxH)
- 2500 to 4500 cm3 work piece volume
- Work Handling Method
- Auto through feed and loop belt
- Other Info
- Equipped with 10 injector blast guns
- Refurbished Price
- Login or Register for price/quote.
- Run & Checked Price
- Login or Register for price/quote.
Print / Download Rosler Continuous Working Loop Belt Blasting Machine Datasheet
Additional Pictures
Out feed conveyor for finished parts

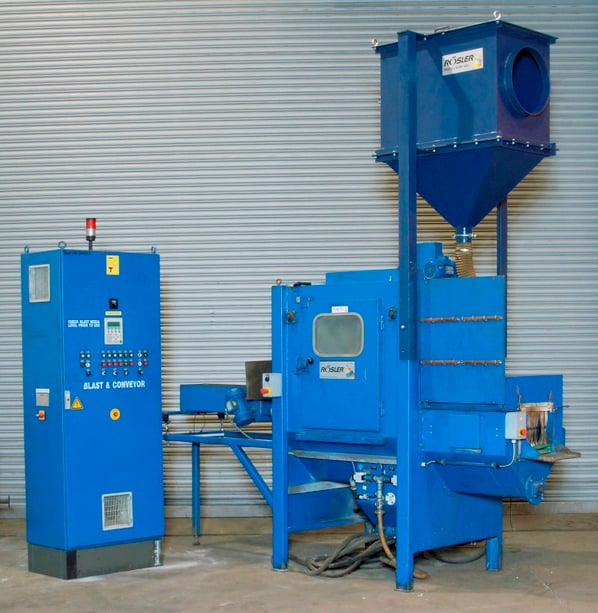

Continuous Working Loop Belt Blasting Machine
Dust Extractor
Vibratory in-feed chute
10 blast guns in main chamber
Blast guns and holders
Continuous Working Loop Belt Blasting Machine
Main control panel
Siemans Simatic OP7 programmer
Interior of control panel with plc controller
Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
