Pangborn (Wheelabrator) Rotary shotblast machine - SOLD

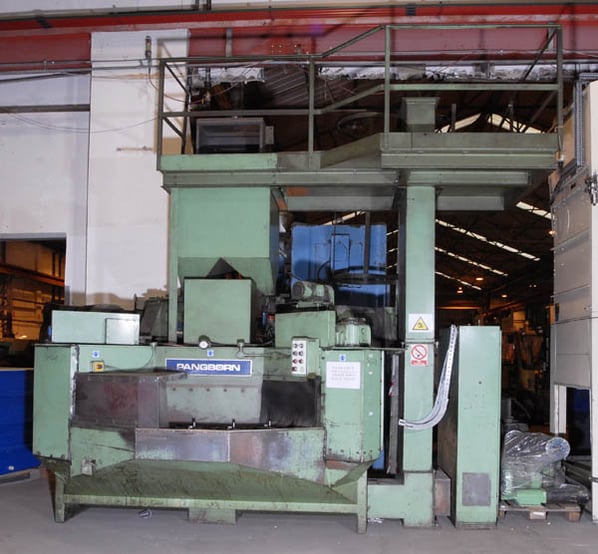

Rotary shotblast machine

This specialist wheelblast machine is built for the automotive industry for such work as shot peaning, clutch refurbishing and gear de-scaling after heat treatment.
The Satellite tables are each 300mm dia and at 310mm centres and within the loading/unloading station there are 5 work tables accessible. The working headroom above the work tables is 300mm (this can be extended). There are two turbine blast wheels - motor driven and standard media elevator and dust/media grading/separators etc. This package new today would cost in excess of £80,000 GBP (€99,500 EUR). Approximate overall dimensions are 3657mm wide 2743mm deep x 4876mm high.
Serial No. W96848. Manufactured in 1981 and maintained by Wheelabrator Group

Stock No: SM248
Manufacturer: Pangborn (Wheelabrator)
Model: Wheelblast
New or Used: Used
Work Envelope (WxDxH): 5 x 300mmØ x 300mm high
Work Handling Method: Indexing rotary table
Other Info: Including DCE Unicell dust extraction
Refurbished Price: Please call on +44 (0) 1922 45 8000

Print / Download Pangborn (Wheelabrator) Rotary shotblast machine Datasheet

Additional Pictures

Rotary shotblast machine

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
