Proceco Typhoon AWW Wheel Wash Plant -
This machine utilises a hot alkaline solution sprayed onto the wheel at high pressure to remove all contaminants. This action is assisted by the rotating brush head to remove accumulated rubber from the bead seat area.
Features:
- Stainless Steel 304 Construction
- Three (3) universal type wheel hub fixtures
- Vertical Sliding cabinet hood with safety latch
- Recirculated Wash
- Freshwater Rinse
- Plant Air Blow Off
- Rotating Polypropylene Brush
- Stainless Steel disc Type oil skimmer
- Automatic Solution level control
- Electric Solution Heating
- Fully insulated solution tank and hood
- Low energy consumption design resulting in lower heating requirements
- Vertical Sealless Pump
- Maximum noise level of 80dB
- Up to 30 Wheels per 8 hour shift
- 810mm turntable diameter
- 510mm maximum work height
- 1016mm loading height
- Max. workpiece weight - 70kg
- Tank Capacity - 1780L
- Pump capacity - 760L/minute @12 Bar
- Pump motor - 37kW
- Stock No
- DP805J
- Manufacturer
- Proceco
- Model
- AWW 32-E-150-2-BO
- Year of Manufacture
- 2007
- Serial
- 06-401
- New or Used
- Used
- Work Envelope (WxDxH)
- 810mm Ø, 510mm high
- Process Stages
- 1
- Other Info
- High spec' wheel washer cost over £100k
- Location
- Aldridge, nr. Birmingham
- Refurbished Price
- Login or Register for price/quote.
- Run & Checked Price
- Login or Register for price/quote.
Print / Download Proceco Typhoon AWW Wheel Wash Plant Datasheet
Additional Pictures

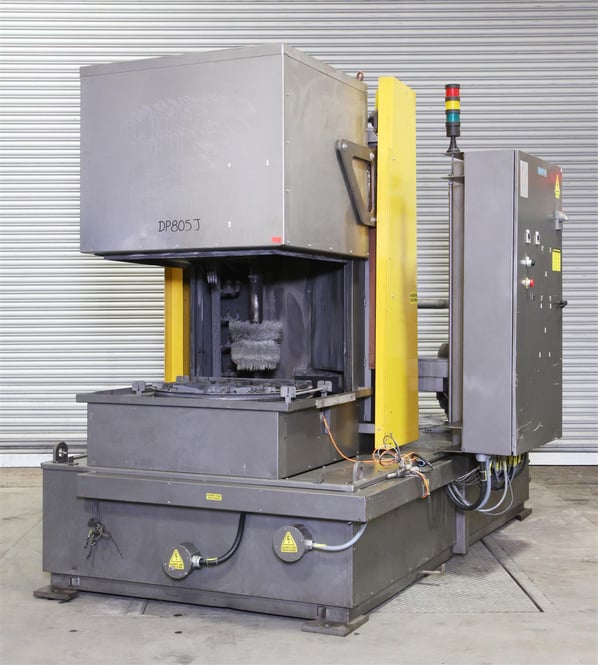

Proceco Aircraft Wheel Wash
Proceco Aircraft Wheel Wash - Rear
Proceco Aircraft Wheel Wash - Cleaning Area
Proceco Aircraft Wheel Wash - Control Panel
Photographs taken prior to refurbishment.
