Chem Resist HF SCRUBBER -
Manufactured by CHEM RESIST in 1997. Type DVS 2205.
For the removal of HF fumes from process and extracting to atmosphere within environmental constraints, by means of 3 x packed chemical wash zones to eliminate process contamination before discharging to atmosphere. Overall size main body 3150 x 3700 mm, Top scrubber 2000 x 3650mm, scrubber overall approx height 9 meters.
SPECIFICATION
FANS,
415v 3ph, 55Kw 1440 rpm, 35,000meters cubed per hour flow rate, CHVN 800 made from PVC inlet 800dia outlet 1070 x 480mm. (1 x fan in need of repair to impellor)
PUMPS,
NP80-65-160, 415v 3ph, 11Kw 2900rpm, flow rate 70meters cubed per hour. Pump pressure 2 bar.
COMPOSITION,
Fan x 2 per scrubber
Pumps x 2 per scrubber
NaOh tank 10 tonne capacity
Stack no longer available
UTILITIES
H Compressed air 1 1/2” inch supply.
IDW Water 2” inch supply.
- Stock No
- FH61
- Manufacturer
- Chem Resist
- Model
- DVS 2205
- Year of Manufacture
- 1997
- New or Used
- Used
- Approx Duty CFM / M³/Hr
- 35,000 meters cubed per hour
- Other Info
- Used
- Refurbished Price
- Login or Register for price/quote.
- Run & Checked Price
- Login or Register for price/quote.
Print / Download Chem Resist HF SCRUBBER Datasheet

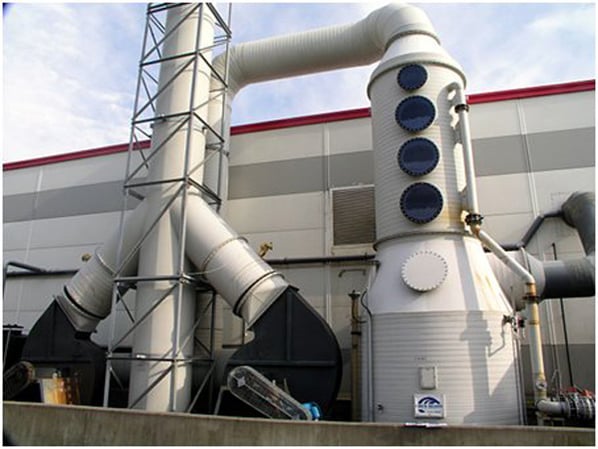

Photographs taken prior to refurbishment.
